About DNS Log
DNS Log provides Administrators with reports and statistics on DNS requests made by all Users, Networks, and Hosts. Aggregated statistics are available at both the registered domain and subdomain levels. Subdomain resolution logs detail when and by whom the requests were made. The log includes information about the resolved IP addresses and whether the requests were blocked or failed.
DNS Log provides Administrators with reports and statistics on DNS requests made by all Users, Networks, and Hosts. Aggregated statistics are available at both the registered domain and subdomain levels. Subdomain resolution logs detail when and by whom the requests were made. The log includes information about the resolved IP addresses and whether the requests were blocked or failed.

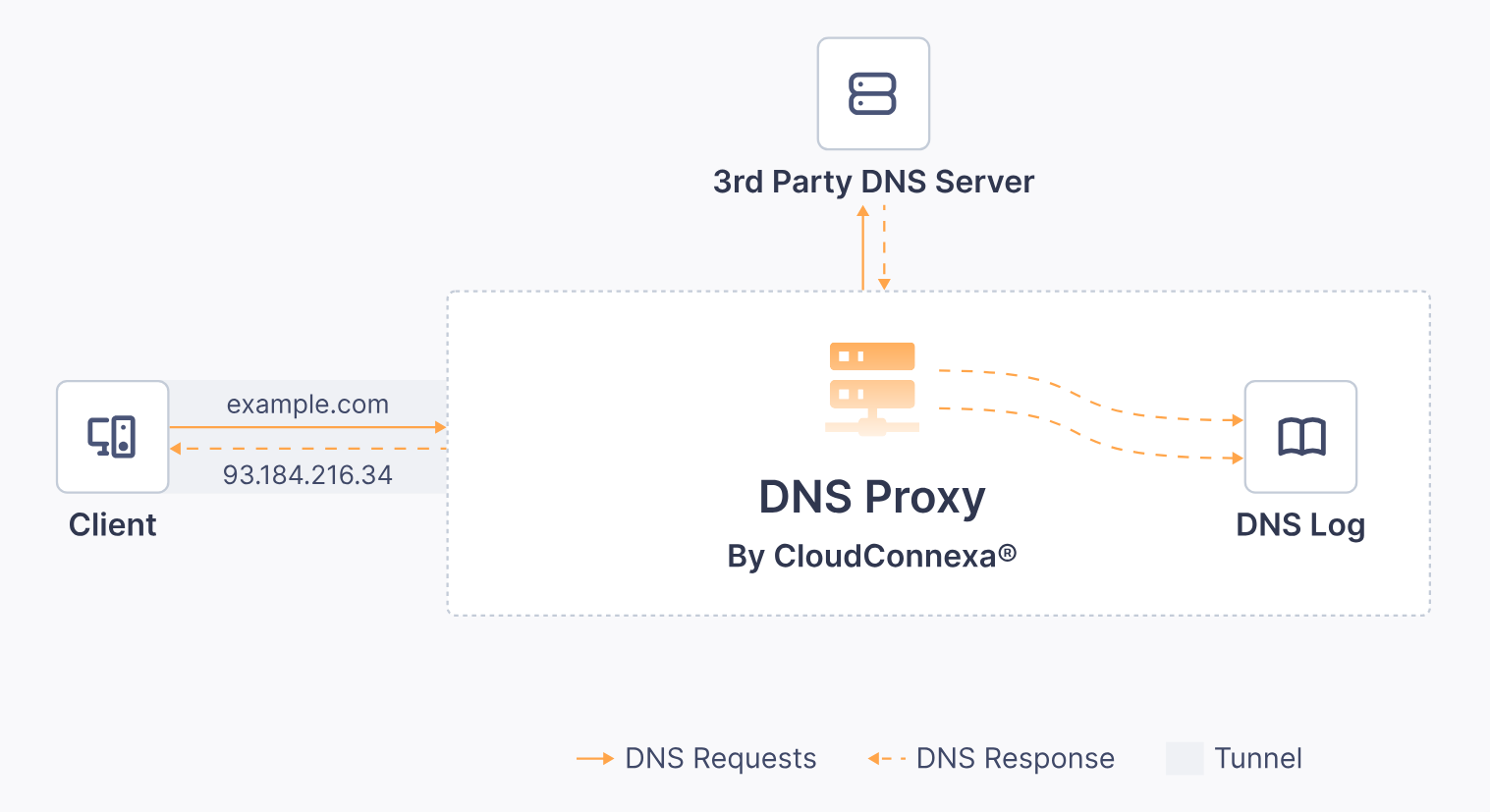

Principle of Operation
When an OpenVPN tunnel is set up to your WPC, CloudConnexa pushes its DNS servers to be used for DNS requests. All DNS requests made by the connected client are securely sent to the CloudConnexa DNS servers through the tunnel regardless of whether actual data traffic to the resolved IP addresses flow through the tunnel or not (see split-tunnel setting, Change internet access for User Groups, Networks, and Hosts ).
Once the CloudConnexa DNS server receives the request, it will send back one or more IP addresses by matching the domain to:
One of the locally configured DNS records. Refer to Set DNS Records.
Configured Host and Network application domain names. Refer to About Application Domain-based Routing
Proxying to configured Private DNS servers or making use of public internet DNS servers. Refer to Set private DNS servers. When Cyber Shield is active, the domain will be matched against the Cyber Shield domain filtering categories, Block list, and Allow list. Refer to About Cyber Shield.
Logs of all these DNS requests are aggregated and presented in the DNS log section. To view them navigate to Logs & API > DNS Log.
Warning
The DNS log will be unavailable if the CloudConnexa DNS Proxy function is turned off. Refer to Set CloudConnexa DNS Proxy Off.
Note
The DNS requests for querying SVCB and HTTPS record types are not supported. SVCB (Service Binding) is a relatively new DNS resource record type that provides enhanced functionality for service discovery and connection establishment. SVCB records are identified by the DNS resource record type 64. The HTTPS record type (65) is a specialized version of SVCB for HTTPS origins.
