Tutorial: Secure DNS Traffic and Use DNS-Based Content Filtering⁠

Overview⁠

Use CloudConnexa to improve DNS security by sending DNS queries through the WPC tunnel and applying DNS-based content filtering with Cyber Shield Domain Filtering.

In this tutorial, you will:

  1. Verify that a connected device sends DNS queries through CloudConnexa.

  2. Configure Domain Filtering in a Shield Policy.

  3. Test that CloudConnexa blocks a domain based on its content category.

You'll use nslookup to verify DNS resolution and malware-test-domain.openvpn.com to confirm that Domain Filtering blocks a malicious domain.

For an introduction to Domain Filtering and other Cyber Shield features, refer to About Cyber Shield.

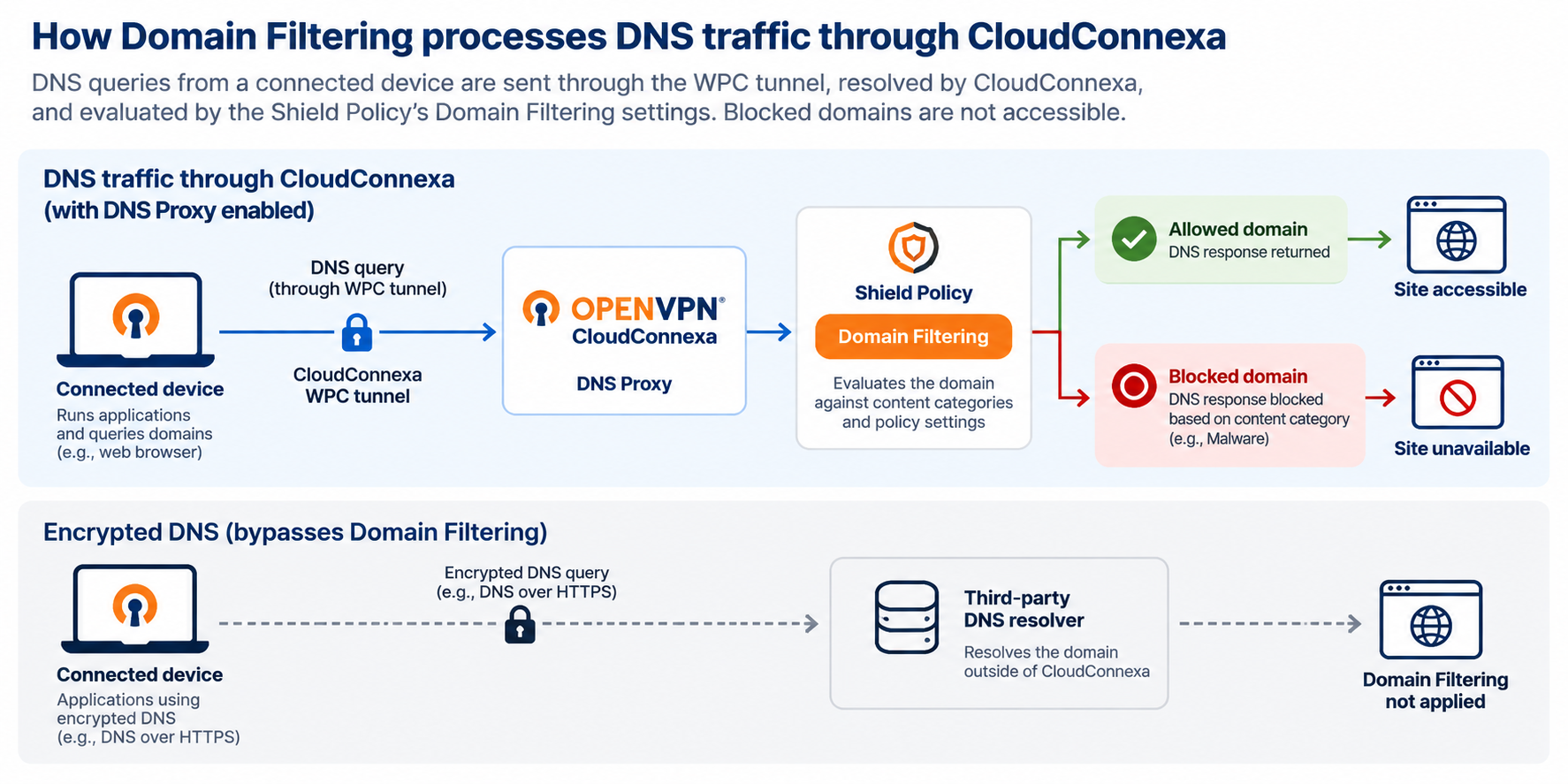

DNS filtering

Before you begin⁠

You need:

If you need to configure a User first, refer to Add a User.

Step 1: Verify DNS resolution through CloudConnexa⁠

First, connect the test device and verify that DNS queries are resolved through CloudConnexa.

  1. Launch OpenVPN Connect.

  2. Connect to your CloudConnexa WPC.

  3. Open a command prompt or terminal.

  4. Run an nslookup command for a domain. For example:

    nslookup openvpn.net

  5. Review the DNS server address in the response.

    • When DNS resolves through CloudConnexa, the DNS server address is within the 100.96.0.0/11 range. For example:

      Server:  UnKnown
Address:  100.96.2.65

If the DNS server isn't in the CloudConnexa range, verify the device's DNS configuration and that DNS Proxy is on before continuing.

For a more detailed DNS-only workflow, refer to Tutorial: Use CloudConnexa to Secure DNS Traffic.

Step 2: Configure DNS-based content filtering⁠

Cyber Shield Domain Filtering lets you monitor or block DNS requests based on content categories.

Domain Filtering is configured per Shield Policy. The policy assigned to a User Group determines which Domain Filtering settings apply to its users.

If you haven't created custom Shield Policies, configure the Default Policy to apply filtering to User Groups that aren't assigned another policy.

  1. Sign in to your WPC's Administration portal by entering your Cloud ID in a web browser (for example, company_name.openvpn.com).

  2. Select Shield → Policies.

  3. Select the edit icon for the Shield Policy you want to configure.

  4. Select the Domain Filtering tab.

  5. Turn on Domain Filtering.

  6. Select a protection level or configure individual content categories.

  7. Ensure the Malware category is set to Blocked in your selected protection level or custom category configuration.

  8. If appropriate for your filtering requirements, configure other categories such as Hacking.

  9. Save your changes.

    • The Domain Filtering settings now apply to User Groups covered by that Shield Policy.

For information about assigning different filtering settings to different User Groups, refer to About Shield Policies and Create or Edit a Shield Policy.

For the available protection levels and content categories, refer to Domain Filtering Protection Levels and Content Categories.

Step 3: Verify that Domain Filtering blocks a malicious domain⁠

Use the OpenVPN test domain to verify that the policy blocks a domain categorized as Malware.

  1. Verify that the test device is connected to CloudConnexa.

  2. Verify that the User Group for your test user uses the Shield Policy you configured.

  3. Open a web browser on the test device.

  4. Navigate to: malware-test-domain.openvpn.com.

  5. Verify that access is blocked.

The blocked test confirms that the device's DNS query was evaluated by the Shield Policy's Domain Filtering configuration.

If the domain isn't blocked:

  1. Verify that Malware is blocked in the policy's Domain Filtering tab.

  2. Verify that the test user's User Group uses the expected Shield Policy.

  3. Verify that DNS Proxy is on.

  4. Use nslookup again to verify that DNS resolves through the CloudConnexa 100.96.0.0/11 range.

  5. Verify that secure or encrypted DNS, including DoH, isn't enabled on the test device or browser.

What happens next⁠

Your connected users can now send DNS queries through CloudConnexa and receive DNS-based content filtering according to their Shield Policy.

You can create additional Shield Policies when different User Groups require different filtering. You can also:

  • Use the Domain Allow List to allow specific domains that would otherwise be blocked.

  • Use the Domain Block List to block specific domains regardless of their content category.

  • Review Domain Filtering events from Shield → Overview and Shield → Metrics.
