Tutorial: Use CloudConnexa to Secure DNS Traffic⁠

Overview⁠

Use CloudConnexa to protect DNS traffic when users connect from trusted or untrusted networks, including public Wi-Fi and public hotspots.

When a device connects to CloudConnexa, its DNS queries travel through the encrypted WPC tunnel and are resolved through CloudConnexa instead of the local network's DNS server. This DNS encryption helps protect users from DNS hijacking and rogue DNS servers.

This tutorial shows you how to:

• Connect a device to CloudConnexa.

• Use nslookup to verify that DNS resolves through CloudConnexa.

• Add users and connect their devices.

This protection is useful for remote users accessing corporate resources, SaaS applications, and other internet services from networks your organization doesn't control.

For information about configuring DNS for your WPC, refer to About DNS Settings.

How CloudConnexa protects against DNS hijacking⁠

DNS hijacking, also called DNS poisoning or DNS redirection, manipulates DNS resolution so a domain resolves to an unintended destination.

For example, a compromised public Wi-Fi network can direct a device to a rogue DNS server. The attacker can then return a fraudulent IP address for a legitimate domain, potentially redirecting users to phishing or pharming sites.

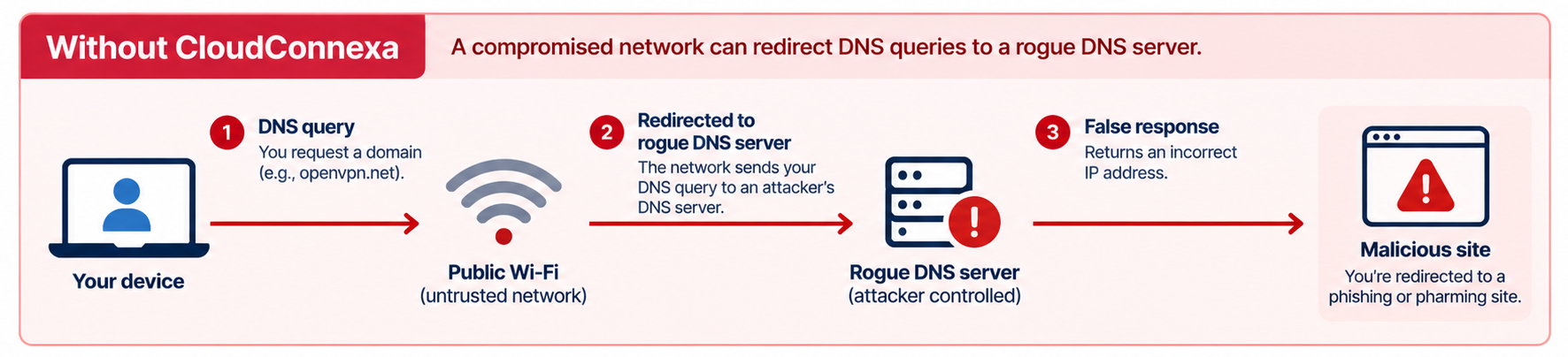

The figure shows that a compromised public hotspot can redirect DNS queries to a rogue DNS server.

When connected to CloudConnexa, the device sends its DNS queries through the encrypted WPC tunnel for resolution. The local public Wi-Fi network doesn't resolve those queries.

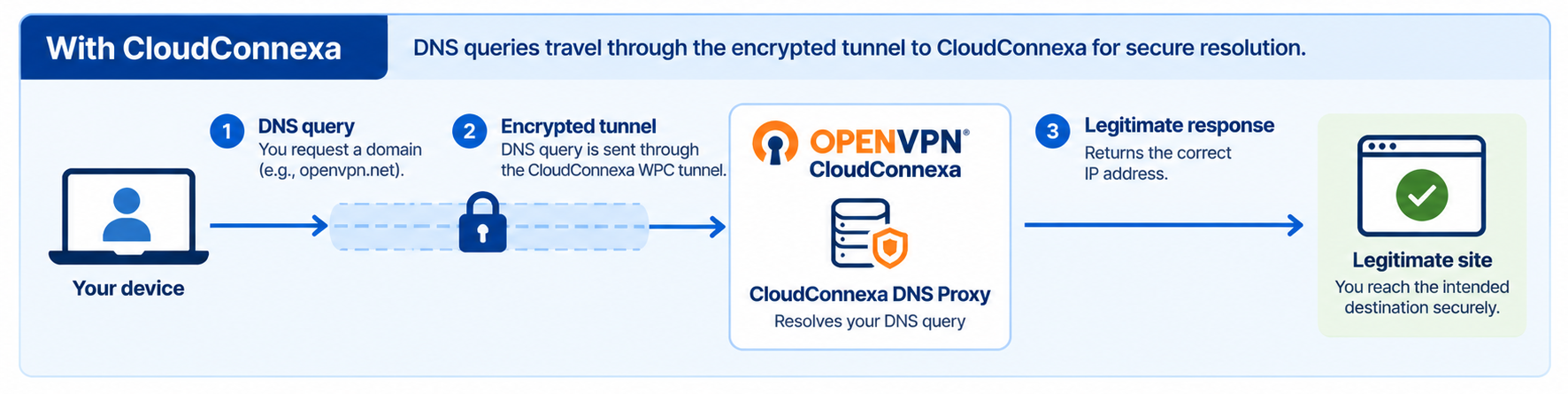

The figure below shows CloudConnexa sending DNS queries through the encrypted WPC tunnel, bypassing the local network's DNS servers.

Before you begin⁠

Before starting this tutorial:

• Create a CloudConnexa account.

• Install OpenVPN Connect on a test device.

• Import a CloudConnexa connection profile.

Step 1: Connect to CloudConnexa⁠

1. Launch OpenVPN Connect.

2. Connect using your CloudConnexa connection profile.

3. Verify that OpenVPN Connect displays Connected.

Step 2: Verify DNS resolution through CloudConnexa⁠

Use nslookup to verify that your device is using CloudConnexa for DNS resolution.

1. While connected to CloudConnexa, open a command prompt or terminal.

2. Run an nslookup command for a domain. For example:

   nslookup openvpn.net

3. Review the DNS server address in the response.

   • When DNS resolves through CloudConnexa, the DNS server address is within the 100.96.0.0/11 range. For example:

     Server:  UnKnown
     Address:  100.96.2.65

Step 3: Add and connect your users⁠

After verifying DNS resolution, add the users whose devices should connect to CloudConnexa.

1. Sign in to your WPC's Administration portal by entering your Cloud ID in a web browser (for example, company_name.openvpn.com).

2. Navigate to Users → Users.

3. Select Add User.

4. Enter the user information and select a Primary User Group.

5. Select Add User.

For the complete procedure, refer to Add a User.

After users connect with OpenVPN Connect, their DNS queries are sent through the encrypted WPC tunnel for resolution through CloudConnexa.

What happens next⁠

CloudConnexa now provides secure DNS resolution for connected users, including when they connect from untrusted networks such as public Wi-Fi.

To add DNS-based threat and content protection, configure Cyber Shield Domain Filtering. Shield Policies let you apply different filtering protection to different User Groups.

Continue with Tutorial: Secure DNS Traffic and Use DNS-Based Content Filtering.
