Tutorial: Implementing a Challenge/Response Authentication in Access Server⁠

Dynamic challenge/response protocol⁠

In the dynamic protocol, the VPN client isn't initially aware of the challenge requirement. Instead, the challenge is presented after the user submits their login credentials or certificate. This is typically used when the challenge changes for each session, such as a time-based one-time password (TOTP) or a hardware token.

Process Overview:

• The user attempts to authenticate with their certificate or credentials.

• The server issues a challenge, temporarily failing the authentication.

• The client prompts the user to answer the challenge.

• The user submits the challenge response.

• The server validates the response and completes the authentication process if the response is correct.

This dynamic approach is useful when you want flexible challenge text per session and when you want to implement the challenge after VPN clients have already installed connection profiles.

Static challenge-response protocol⁠

In the static protocol, the VPN client already knows about the challenge requirement because the static challenge is embedded in the connection profile. This method is more efficient but only suitable for VPN sessions, not web-based ones.

Process Overview:

• The client already knows the challenge via the connection profile.

• The client displays the challenge to the user.

• The user submits their response along with their login credentials.

• The server processes both the login credentials and the challenge response in one transaction.

• If the response is correct, the client is authenticated.

The static protocol is ideal when the challenge text is constant for all login sessions. However, if static challenge support is unavailable for a session (such as in web authentication), the system should fall back to dynamic challenge mode.

Steps to enable the dynamic protocol:⁠

1. Create a VPN user.

2. Download a new connection profile from either the Admin Web UI or the Client Web UI:

   • Download from the Admin Web UI.

   • Download from the Client Web UI.

3. Use a post-authentication script to implement a dynamic challenge/response. Here's a basic outline of how the script will function:

   import time
   from pyovpn.plugin import *

   # Specifies the challenge text.  The AS will place this string
   # in client profiles so that clients can prompt the user for
   # a response.
   STATIC_CHALLENGE = "What is the current year (YYYY)?"

   # Should user's response be echoed?
   STATIC_CHALLENGE_ECHO = True

   def post_auth_cr(authcred, attributes, authret, info, crstate):

       # Don't do challenge/response on sessions or autologin clients.
       if info.get('auth_method') in ('session', 'autologin'):
           return authret

       # was response provided? -- we support responses issued for both static and dynamic challenges
       year = authcred.get('static_response') # response to Static Challenge provided along with username/password
       if not year:
           year = crstate.response()          # response to dynamic challenge

       if year:
           # received response
           crstate.expire()
           try:
               if int(year) == time.gmtime().tm_year: # verify the result
                   authret['status'] = SUCCEED
                   authret['reason'] = "Year is correct"
               else:
                   authret['status'] = FAIL
                   authret['reason'] = "Year is incorrect"
           except ValueError:
               authret['status'] = FAIL
               authret['reason'] = "Response fail -- Year must be an integer"

           # allow end user to see actual error text
           authret['client_reason'] = authret['reason']

       elif crstate.get('challenge'):
           # received an empty or null response after challenge issued
           crstate.expire() # make sure to expire crstate at the end of the challenge/response transaction
           authret['status'] = FAIL
           authret['reason'] = "Year was not provided"

           # allow end user to see actual error text
           authret['client_reason'] = authret['reason']

       else:
           # initial auth request without static response; issue challenge
           crstate['challenge'] = True # save state indicating challenge has been issued
           crstate.challenge_post_auth(authret, STATIC_CHALLENGE, echo=STATIC_CHALLENGE_ECHO)
       return authret

4. Transfer your post-auth script to your Access Server.

5. Install it on Access Server (connected to the console and get root privileges):

   cd /usr/local/openvpn_as/scripts/
   ./sacli --key "auth.module.post_auth_script" --value_file="path_to_your_script.py" ConfigPut
   ./sacli start

   1. 1

      Replace path_to_your_script.py with your post-auth script file name and location.

6. Launch OpenVPN Connect.

7. Click or tap the profile toggle to connect.

8. Enter your password at the prompt.

   • The VPN connection starts on the server side.

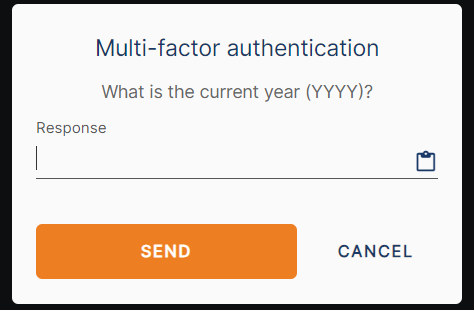

9. After successful user authentication, Access Server issues a challenge like this:



10. After entering the correct response, click SEND.

    • The VPN connects.
