Tutorial: Configure a DD-WRT Router To Connect to CloudConnexa

Many of our Users have expressed interest in using DD-WRT or related routers to connect to CloudConnexa instead of using the Connector application.

While connecting in this manner may not yield the best performance, due to the limited processing power and memory of the router, it could be useful in cases where convenience, rather than high throughput, is required.

To configure the routers you need to use specific sections of the OpenVPN Connector Profile in specific setting configurations.

First, you need to download the Profile in .ovpn format from the Network configuration you have created in the Administration portal to represent the router’s Network.

The Profile can be downloaded by selecting it as the option in the drop-down list shown after clicking on the download icon.

Before you begin, make sure your router is properly configured for a NTP server. This setting could be found under the set up tab in your router configuration. Under Time settings, make sure the NTP Client is set to Enable and the Server IP / Name is populated with a proper time server. If you do not know what your time server is, please fill in time.nist.gov in the text box as indicated.

Afterward, visit the Services tab, then the VPN tab. Under the section Start OpenVPN Client, click the Enable radio box. If you do not see this section, it is possible that your DD-WRT build is not OpenVPN enabled. Please consult the proper DD-WRT documentation for more information on the various DD-WRT builds.

Once you have selected that option, also check the Enable option under Advanced Options, this will allow you to define options required for the WPC connection to work.

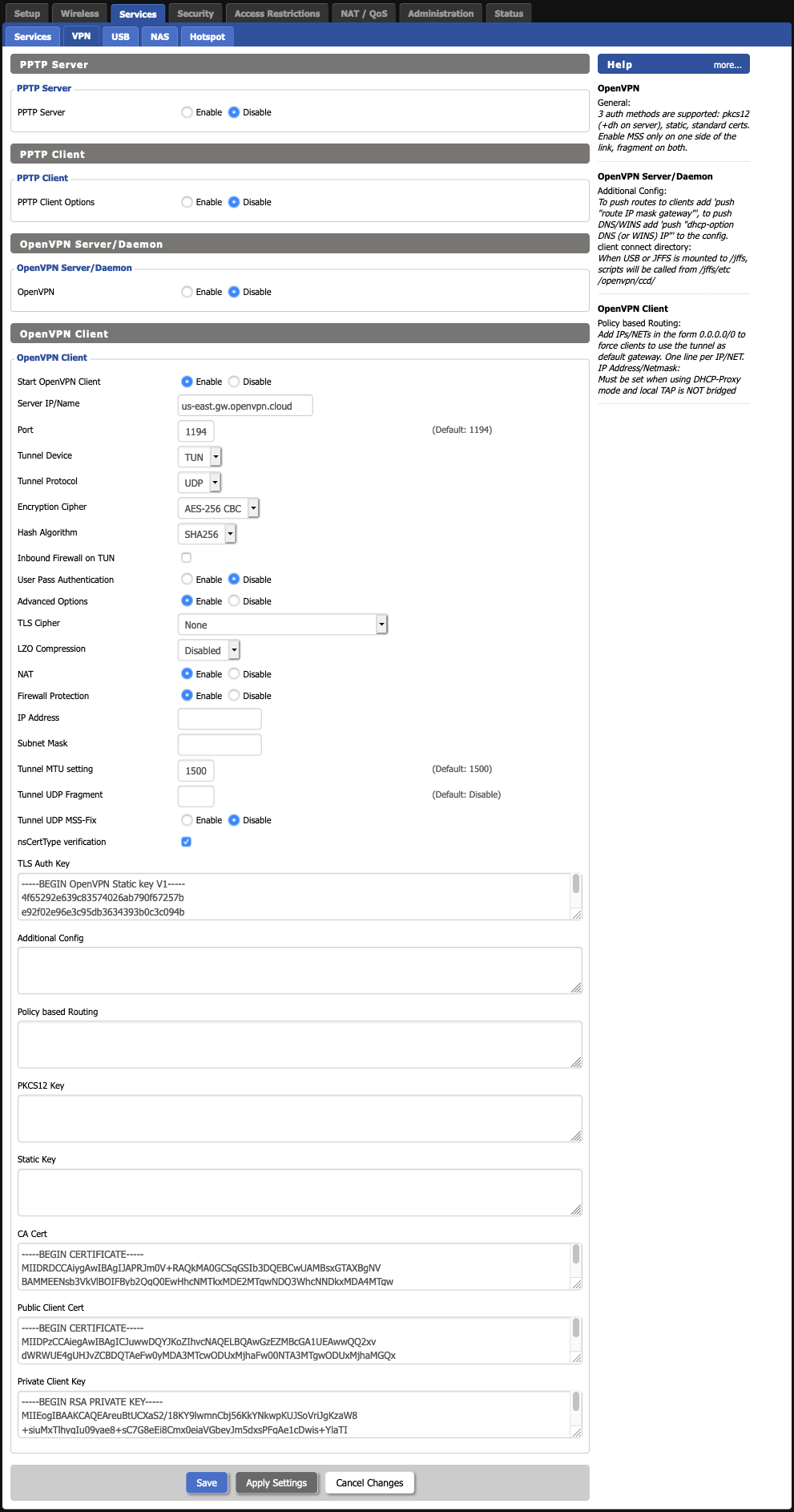

The following screen should then be displayed, as depicted below:

Start CloudConnexa Client: Enables/Disables the CloudConnexa client connection.

Server IP/Name: The hostname of the WPC server you are trying to connect to. Look inside your Profile for entries starting with remote. For example, the entry remote us.shieldexchange.com 1194 udp indicates that the hostname is us.shieldexchange.com.

Port: The port number the WPC server is listening on. If you do not know what this is, either look for the port number in remote entries such as the one shown in the previous example. In the previous example, the port is 1194. If your server is only using a single port, you may see the port number specified using the port directive (e.g. port 1194). It is preferable that you choose UDP ports over TCP, as UDP provides better reliability for your WPC sessions.

Tunnel Device: Select TUN

Tunnel Protocol: Select UDP

Encryption Cipher: Select whatever appears on the cipher line of the Profile. By default, AES-256-CBC is used for CloudConnexa.

Hash Algorithm: Select whatever appears on the auth line of the Profile. By default, SHA256 is used for CloudConnexa.

Verify Server Cert.: Located in Advanced Options. Checks to see if the remote server is using a valid type of certificate meant for OpenVPN Connections. As this is a security feature of CloudConnexa, it should be left enabled.

Advanced Options: As described previously, this option must be Enabled for you to set the required options necessary for a successful WPC connection.

LZO Compression: Enables compression over WPC. This option should be Disabled.

NAT: Creates a NAT layer over the WPC tunnel. This should be Enabled if you plan to have all your client’s traffic to be sent over the WPC tunnel under the shared WPC IP address assigned by CloudConnexa. If you want to send traffic from your clients directly over the tunnel without any address modification(s) (e.g. If you were using Advanced Routing), then this option should be Disabled. It is highly recommended that you turn this option ON, unless you know what you are doing.

Local IP Address: Specify a IP address that your CloudConnexa tunnel should use. This field is usually not applicable, since CloudConnexa automatically assigns an address upon a successful connection.

TUN MTU Setting: The maximum transmission unit (MTU) used over the WPC tunnel. Leave this at 1500, unless otherwise directed by a support staff or a Network professional.

Tunnel UDP Fragment (blank).

Tunnel UDP MSS-Fix (Default: Disable).

TLS Cipher: What encryption algorithm CloudConnexa should use for encrypting its control channel. Selecting None will allow DD-WRT to auto-negotiate the strongest available cipher.

TLS Auth Key: The static key CloudConnexa should use for generating HMAC send/receive keys. You may find this key surrounded by the <tls-auth>..</tls-auth> brackets. Copy the contents from your Profile, starting from –BEGIN CloudConnexa Static key V1– until you reach –END CloudConnexa Static key V1–.

Additional Config: Any additional configurations you want to define for the WPC connection.

Policy based Routing: This field should be left blank.

PKCS12 Key: This field should be left blank.

Static Key: This field should be left blank.

CA Cert: The CA certificate used by the WPC server, found between the <ca>…</ca> brackets inside the Profile. Start copying from –BEGIN CERTIFICATE– until you hit the first –END CERTIFICATE–.

Public Client Cert: The CA certificate used by the WPC client, found between the <cert>..</cert> brackets inside the Profile. Start copying from –BEGIN CERTIFICATE– until you hit –END CERTIFICATE–.

Private Client Key: The client’s private key used by the WPC client, found between the <key>..</key> brackets inside the Profile. Start copying from –BEGIN RSA PRIVATE KEY– until you hit –END RSA PRIVATE KEY–.

To start the WPC connection, click the Apply Settings towards the bottom of the page. You may view the status of your WPC connection by visiting the Status tab, and then the CloudConnexa tab.
