Tutorial: How to Set Up an Access Server Cluster
Overview
This tutorial shows you how to set up a cluster of Access Servers to scale horizontally and provide active-active redundancy. A typical setup consists of multiple Access Servers that store configuration files on a shared database, clients connecting to nodes based on a round-robin DNS record, and VPN connections accessed from one global subscription licensing pool.
For details about the cluster feature, refer to Access Server's Cluster Setup.
Prerequisites
At least one installed Access Server.
A subscription license key.
A DNS hostname for the round-robin DNS.
Recommended: a configuration backup if you're converting an existing Access Server.
With a single subscription license key, you can handle the licensing needs for all your cluster's Access Server nodes. The nodes share the available connections from the subscription license as needed. You can adjust your subscription license anytime from the Access Server billing portal.
To purchase a subscription license key, follow the steps here: How to purchase.
Start by creating a new database server. We provide some brief steps, but for further information, refer to AWS or DigitalOcean for their documentation.
AWS
Create a new managed relational database service (RDS) from the AWS service.
Follow the configuration steps to select options, specify the instance size and fault-tolerance settings, define the DB instance identifier, and Master username and Master password.
Take note of the username and password because you will need them later.
Select your VPN and subnet, public accessibility, optional settings, and complete the launch.
DigitalOcean
Create a new database cluster.
Choose your required cluster configuration, datacenter, and VPC network.
Enter a unique name and select a project.
Once your database server is up and running, you need connection details to set up your first Access Server in the cluster. Get the following information to connect your Access Server nodes to your database server(s):
AWS
Endpoint
Master username
Master password
DigitalOcean
Username
Password
Host
Port
Database
Open the following ports on your Access Server node:
TCP 22: SSH access.
TCP 443: Web interface access and OpenVPN TCP connections.
TCP 943: Web interface access and cluster control channel (as of version 3.0.0).
UDP 1194: OpenVPN UDP connections.
Adjust the security of your database server as needed.
AWS
Note that Amazon RDS databases are protected by security groups, an Amazon-specific security system that functions like a firewall. Therefore, you must adjust the security group settings so your Access Server nodes can access the Amazon RDS database.
DigitalOcean
For DigitalOcean, you must adjust the trusted sources to improve the database security and allow incoming connections from each node.
Sign in to your Access Server console and get root privileges.
Install the MySQL and client library packages:
apt-get update apt-get install mysql-client libmysqlclient-devConnect to your database instance using the MySQL command-line tool, replacing the values with those from your database connection information when you set up your database instance:
AWS:
mysql -h [Endpoint] -u [Master username] -pDigitalOcean:
mysql -h [Host] -u [username] -P [port] -D [database] -p
When prompted, provide the Master password (AWS) or password (DigitalOcean).
Upon successful connection, a message similar to this displays:
Welcome to the MySQL monitor. Commands end with ; or \g. Your MySQL connection id is 13 Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.
You can now exit with the exit command.
Sign in to the Access Server Admin Web UI using the server's IP address or the custom hostname, if you have configured it, along with /admin. (For example, https://192.0.2.10/admin.)
Click VPN Server.
The Network Settings tab displays.
Click the Clustering & Failover tab.
Click New Cluster.
The Create a new cluster page displays.
Convert the Access Server default SQLite3 database to a MySQL-type database
Enter the Node Name.
This unique name displays on the Status Overview page after you complete your cluster configuration — it automatically populates with the existing node name of your Access Server.
Enter your database connection information into the MySQL Settings fields.
The MySQL Hostname or IP Address is the endpoint (AWS) or host (DigitalOcean).
The MySQL Port is set to 3306 by default. Change it to the port noted above for DigitalOcean.
The MySQL Username is the Master username (AWS) or username (DigitalOcean).
The MySQL Password is the Master password (AWS) or password (DigitalOcean).
(Optional) Adjust the Inter-node communication settings with the hostname or IP address for the VPN server.
Define the Cluster round-robin DNS hostname, e.g., https://vpn.mybusiness.com.
Click Save and Restart.
The local SQLite3 databases are converted to the new MySQL-type databases. Access Server takes a few minutes or more for this conversion. If your user base is large, the conversion will take longer.
Once completed, Access Server restarts automatically.
Once the Access Server is restarted, sign back into your Admin Web UI.
The Cluster View notification is displayed. With a cluster setup, some Admin Web UI pages are modifiable for the entire cluster, while others require changes to be made on individual nodes. For example, a node-specific setting is the software license for that node.
Click Confirm.
Sign in to the Admin Web UI of the new node.
Click VPN Server.
The Network Settings tab displays.
Click the Clustering & Failover tab.
Click Join A Cluster.
Enter the database connection details and click Save and Restart to join the cluster.
Once the node restarts, you can sign in, and the Cluster View message displays.
Click Confirm.
You can create DNS A records for each Access Server node that resolve to a single hostname. Another option is to use a more intelligent DNS service, such as Route 53, which can manage DNS records based on health checks or geolocation data.
However, a DNS round-robin is the simplest solution, giving your users a single address to use for connections. Each VPN client tries each IP address in the DNS round-robin record in sequential order until it successfully connects. Should a server fail, a temporary connection failure occurs for any clients connected to that server until they automatically connect to another server in the cluster.
To set up DNS A records:
Add a new DNS record with your web hosting provider.
Select Type A.
Enter the Hostname (For example, “VPN” or “cluster”).
Enter the IP address of the first node in the cluster.
Change the TTL if desired.
Click Save.
Repeat these steps to add each Access Server node as an IP address assigned to the same Hostname. Multiple A records on the same subdomain automatically become a round-robin DNS record in almost all DNS management systems.
Example DNS round-robin setup
A setup with four nodes might look like this:
Hostname | IP Address |
|---|---|
cluster(.yourcompany.com) | 192.0.2.10 |
cluster(.yourcompany.com) | 192.0.2.20 |
cluster(.yourcompany.com) | 192.0.2.30 |
cluster(.yourcompany.com) | 192.0.2.40 |
The Admin Web UI displays differently when your Access Servers run in a cluster.
Sign in to the Admin Web UI for any node.
The Cluster View notification displays until you check to dismiss it.
From each page in the Admin Web UI, the node name and status display above the navigation pane.
Click the cluster drop-down to switch between nodes.
Pages and sections specific to the node are labeled with the node name.

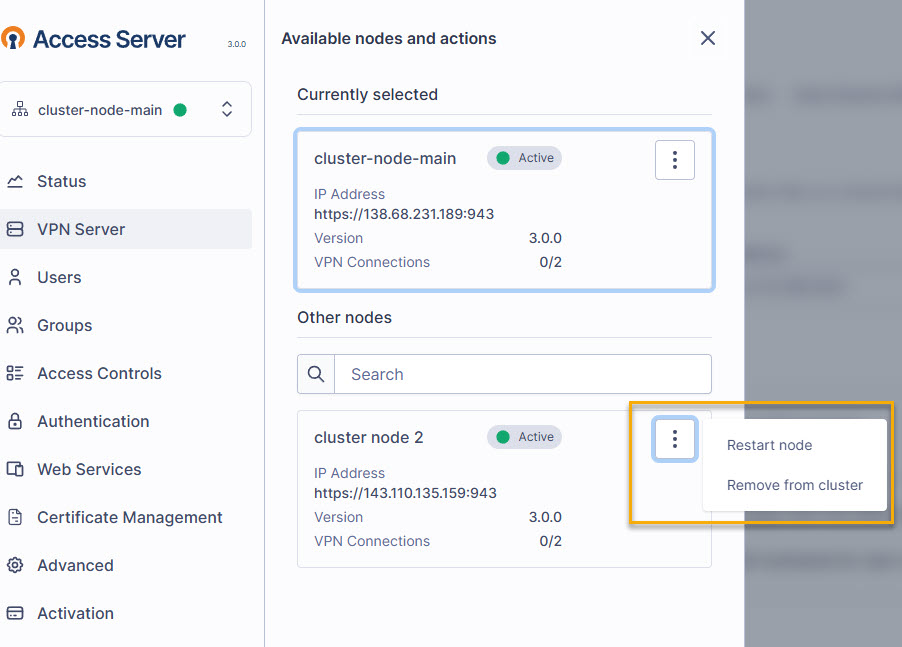

From the cluster node drop-down, you can click on the node details to restart or remove it.
