The Client Web UI⁠

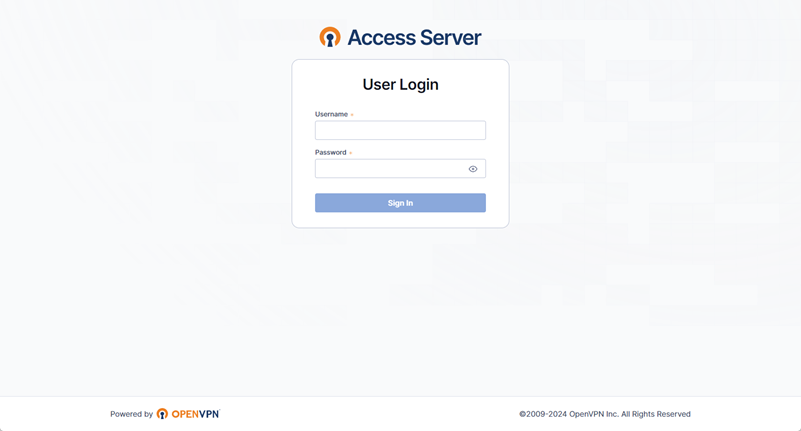

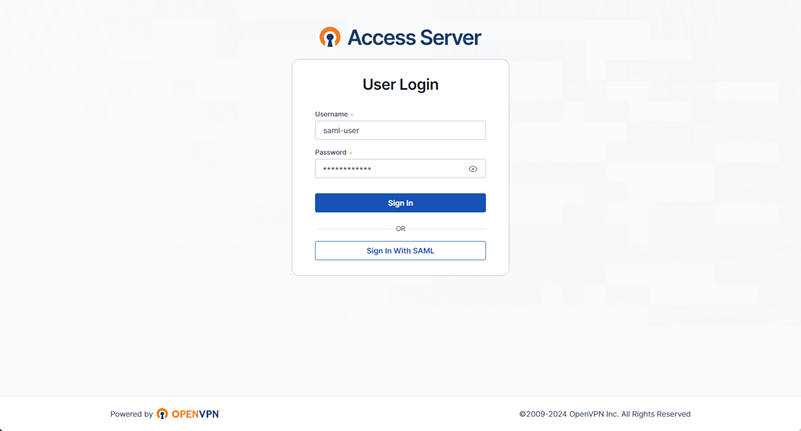

Users can sign in when they first navigate to the Client Web UI. The interface displays a window with fields for entering a username and password. Optionally, if you've configured SAML as an authentication method, it provides a button for SAML authentication.

On this screen, the default display shows the Access Server brand, but you can customize the screen to display your business logo and information.

The following screens display for users configured to authenticate with MFA and usernames and passwords.

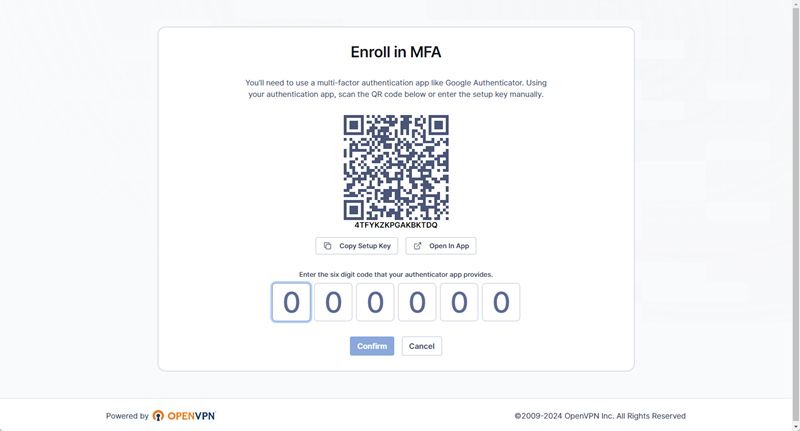

The enrollment screen displays when a user needs to set up MFA TOTP. They scan the QR code or enter the secret into an app that supports TOTP to generate their time-based one-time password.

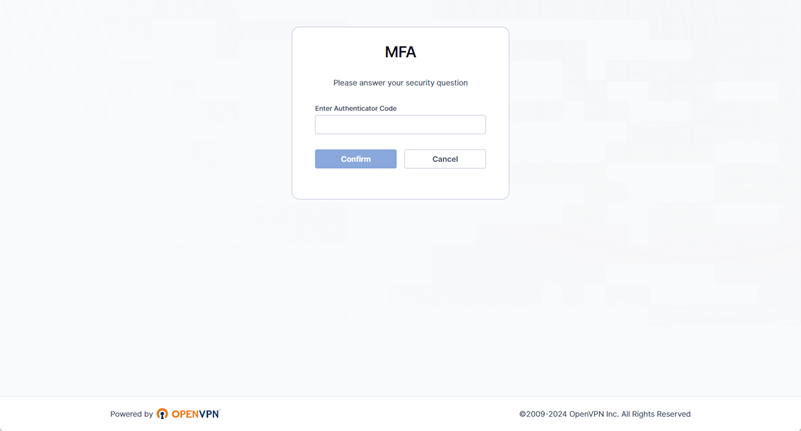

The TOTP code screen displays when a user is already enrolled in MFA. They enter their time-based code to complete authentication and sign in.

Users configured with the SAML SSOclick Sign In With SAML, and the interface directs them to their SAML provider to sign in with their credentials. Once they successfully authenticate, it returns them to the Downloads page.

If a user is already signed in with their SAML provider, it skips the authentication step and takes them to the Downloads page.

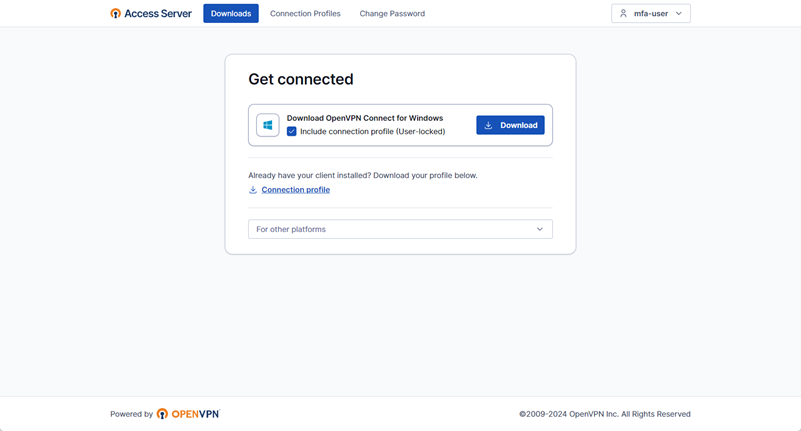

After successfully authenticating, users arrive at the Downloads page. They can download OpenVPN Connect for their operating system, which displays.

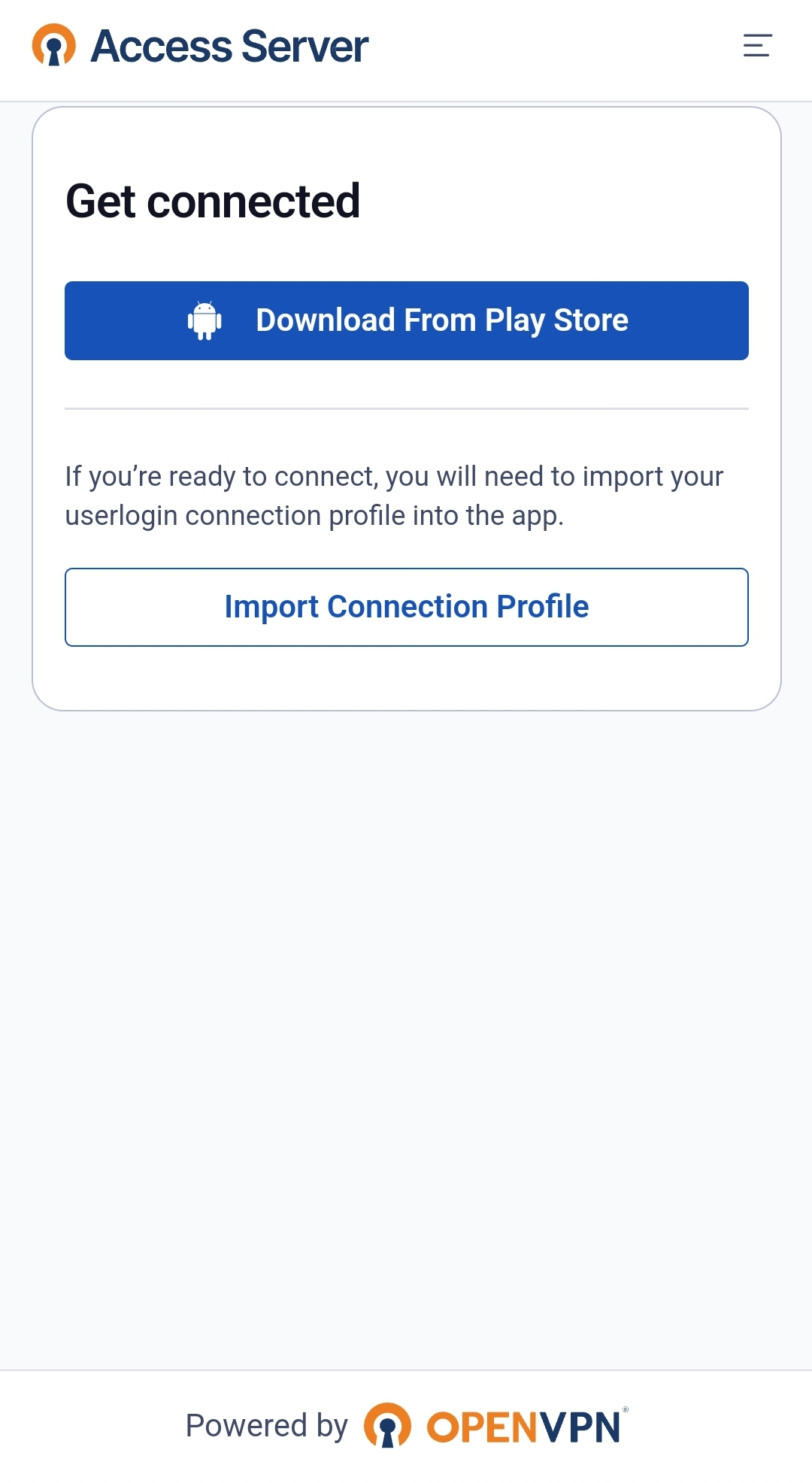

In the example above, the user is on a Windows device. In the example below, the user is on an Android device.

The window displays the recommended OpenVPN Connect app based on the user's device. It also shows OpenVPN Connect for all supported platforms in the For other platforms drop-down:

• Windows

• macOS

• Linux

• Android

• iOS

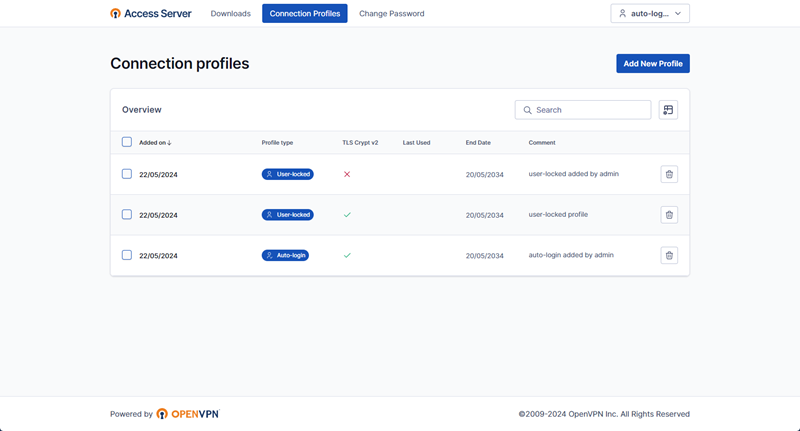

When a user clicks Connection Profiles, that page displays where they can see existing profiles and create new ones.

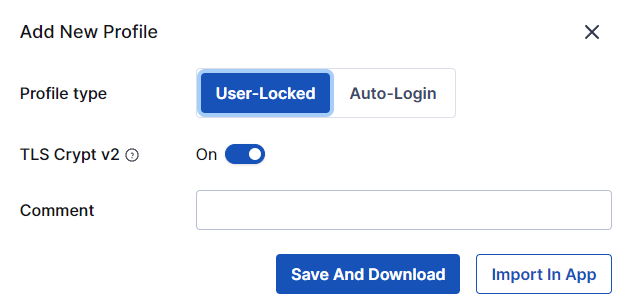

When a user creates a new profile, they can download the .ovpn file or choose to import it directly into OpenVPN Connect.

Users can delete existing profiles from this screen.

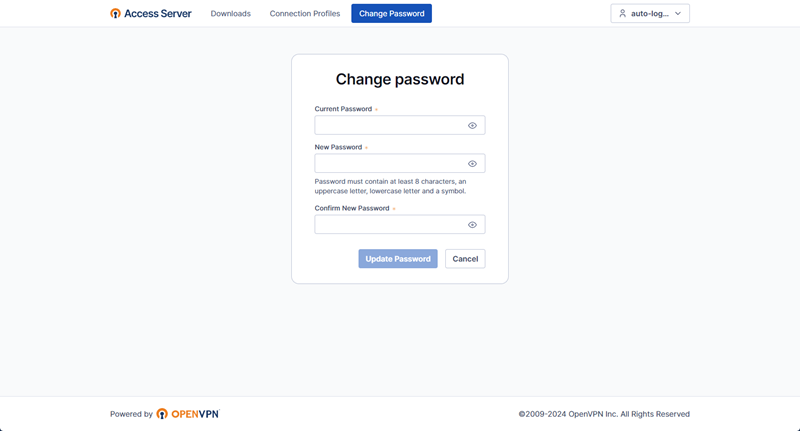

When a user clicks Change Password, a screen displays where they can verify their current password and set a new password.

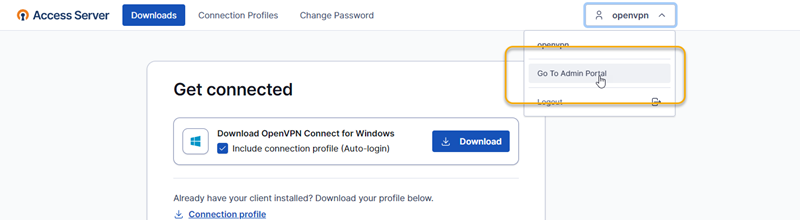

When a user has admin rights granted and signs in to the Client Web UI, the Go To Admin Portal option is available in the user account drop-down. Clicking it takes them to the Admin Web UI login.

To sign out, a user clicks on their user account drop-down and clicks Logout. They are returned to the User Login screen.
