User Guide -  Network Settings

Network settings enable Administrators to view, add, edit, and filter Networks within a WPC account. You may view all Networks within a WPC account from the Network list screen, or details about specific Networks from the Overview screen.

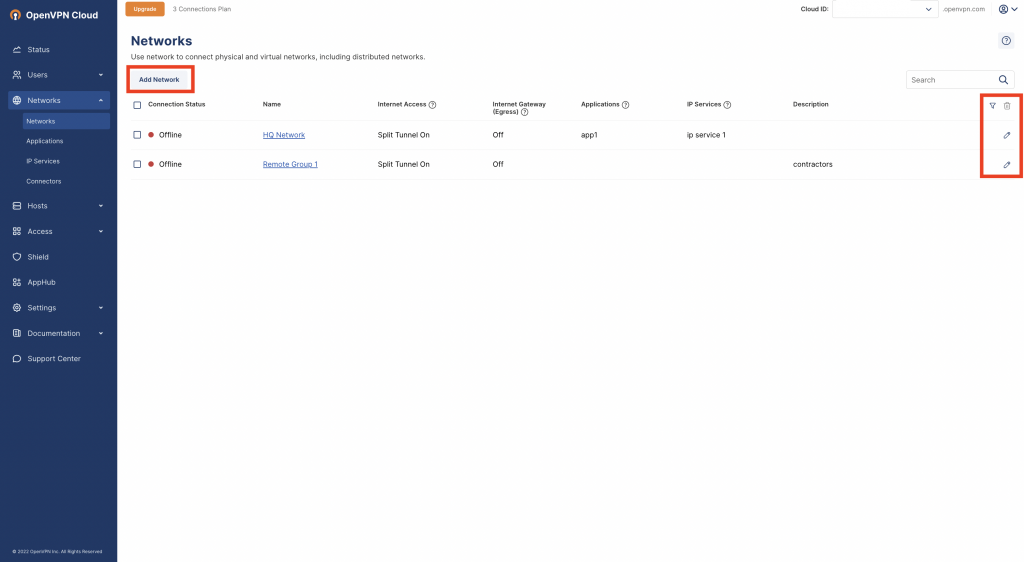

Network list screen

The Network list screen can be accessed by navigating to Networks from the administration portal. This screen lists all Networks within a tenant’s account, including:

  • Connection Status
  • Network Name
  • Network Internet Access
  • Network Internet Gateway (Egress) status
  • Applications accessible to the Network
  • IP Services accessible to the Network
  • Optional Description

You may add, edit, delete or filter Networks from this screen. To add a Network click the Add Network button. To edit, click the edit icon (pencil) of the Network to update. To delete, select the checkbox of the Network, then click the delete icon (trash can). To filter Networks, click the filter icon (next to the delete icon), and select your filter.

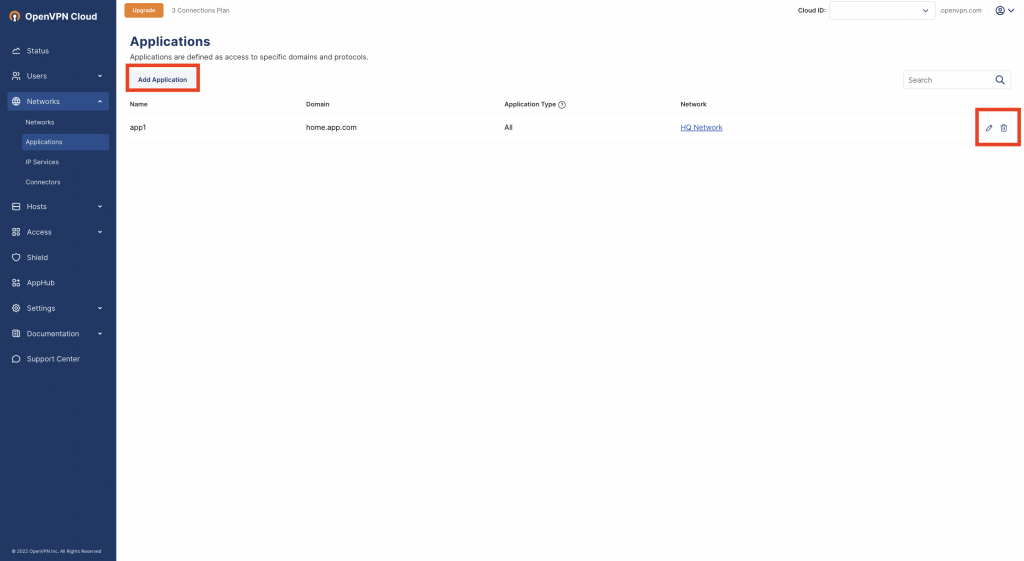

Applications list screen

The Applications list screen can be accessed by navigating to Networks > Applications from the administration portal. This screen lists all Applications accessible to Networks within the WPC account, including:

  • Application Name
  • Application Domain
  • Application Type (Protocols and Ports)
  • Network

You may add, edit or delete an Application from this screen. To add an application to the Network click Add Application. To edit, click the edit icon (pencil) of the Application to update. To remove, click the delete icon (trash can) of the Application to be deleted.

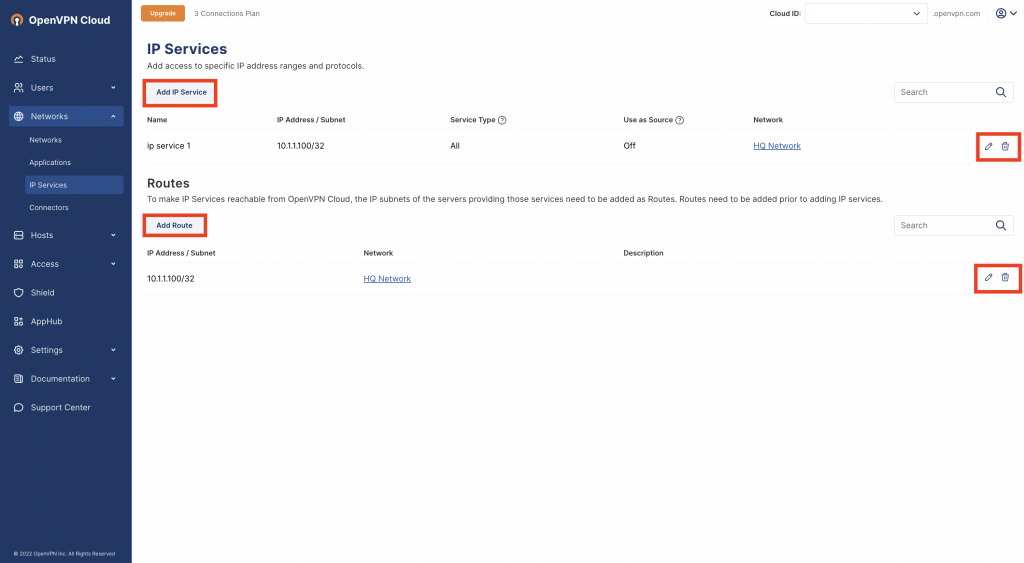

IP Services list screen

The IP Services list screen can be accessed by navigating to Networks > IP Services from the administration portal. This screen lists all Network IP Services accessible within a WPC account including:

  • IP Service Name
  • IP Address / Subnet (IPv4 and IPv6)
  • Service Type (Protocols and/or Ports)
  • Use as Source status
  • Network

Routes

  • IP Address / Subnet
  • Network
  • Optional Network Description

You may add, edit or delete an IP Service or Route from this screen. To add an IP Service or a corresponding Route, click Add IP Service or Add Route. To edit, click the edit icon (pencil) of the item to update. To remove, click the delete icon (trash can) of the item to be deleted.

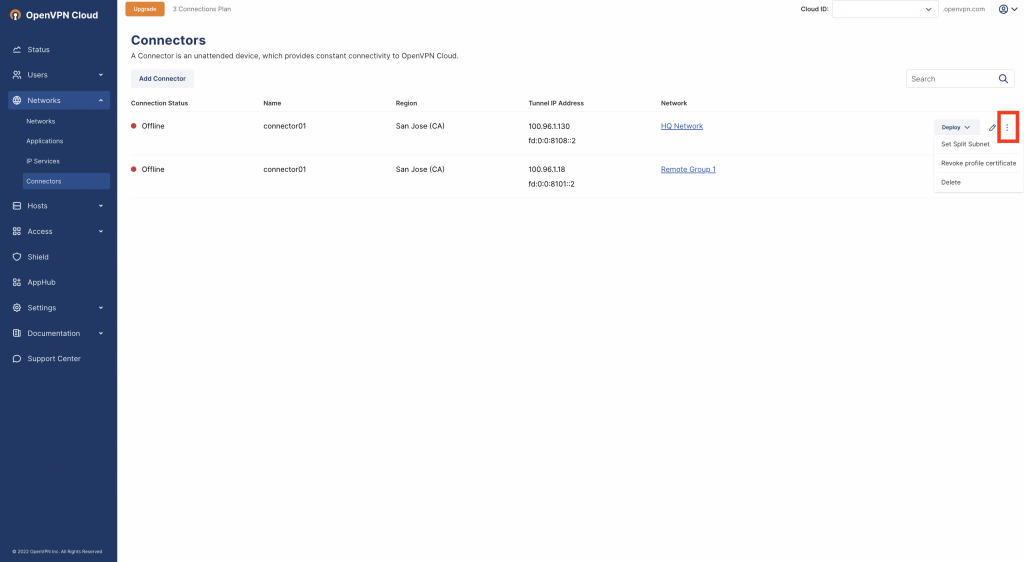

Connectors list screen

The Connectors list screen can be accessed by navigating to Networks > Connectors from the administration portal. This screen list s all Connectors within a tenant’s account including:

  • Connection Status
  • Connector Name
  • Connector Region(s)
  • Tunnel IP Address (IPv4 and IPv6)
  • Network(s) the Connector is assigned to

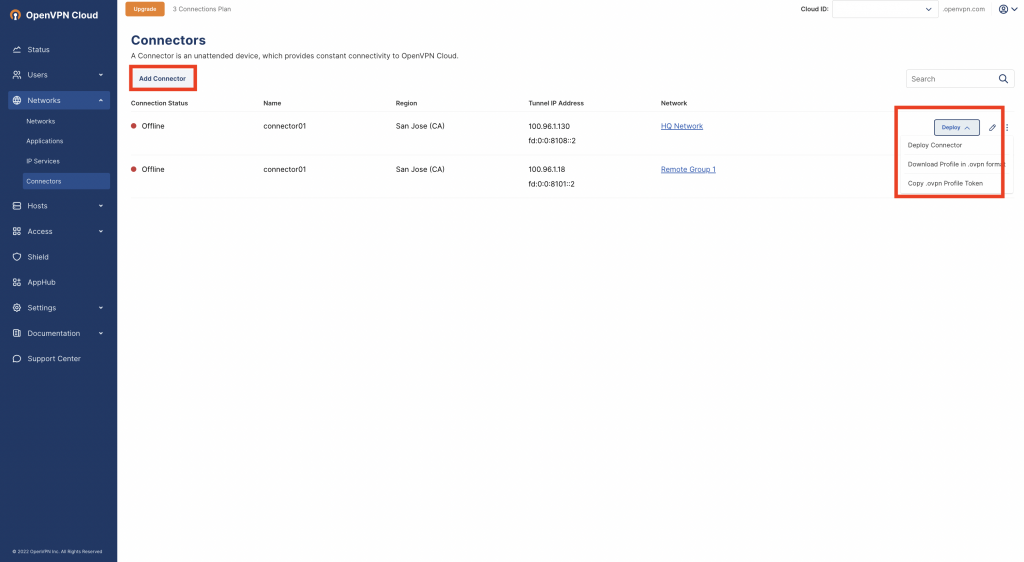

You may add, edit, or delete Connectors from this screen. To add a Connector, click Add Connector. To edit, click the Connector icon (pencil) to update. The Deploy Connector drop-down menu allows:

  • Deploy Connector
  • Download Profile in .ovpn format
  • Copy .ovpn Profile Token

The kebab menu (three dots) allows:

  • Set Split Subnet
  • Revoke profile certificate
  • Delete

Network Overview screen

To access a Network’s Overview screen, navigate to Networks, and click the Network Name.

The Network Overview screen is a high-level summary of a selected Network configuration. The Overview screen displays:

  • Network connection Status
  • Network Name
  • Network Internet Access status
  • Network Internet Gateway status
  • IP Address / Subnet assigned for tunneling (IPv4 and IPv6)

This Overview screen is segmented into 3 tabs:

  • Applications
  • IP Services
  • Connectors

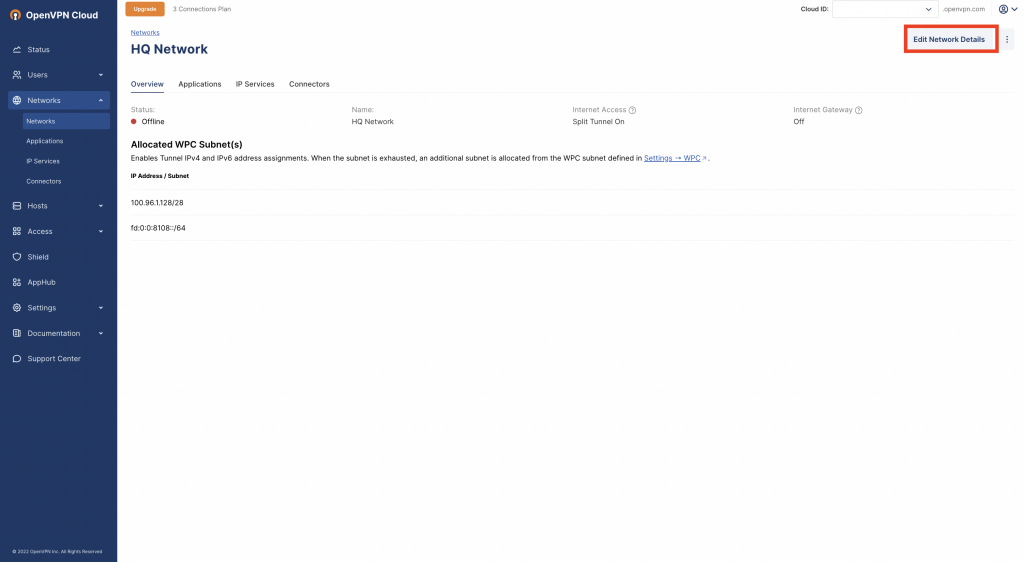

To edit a Network, click Edit Network Details.

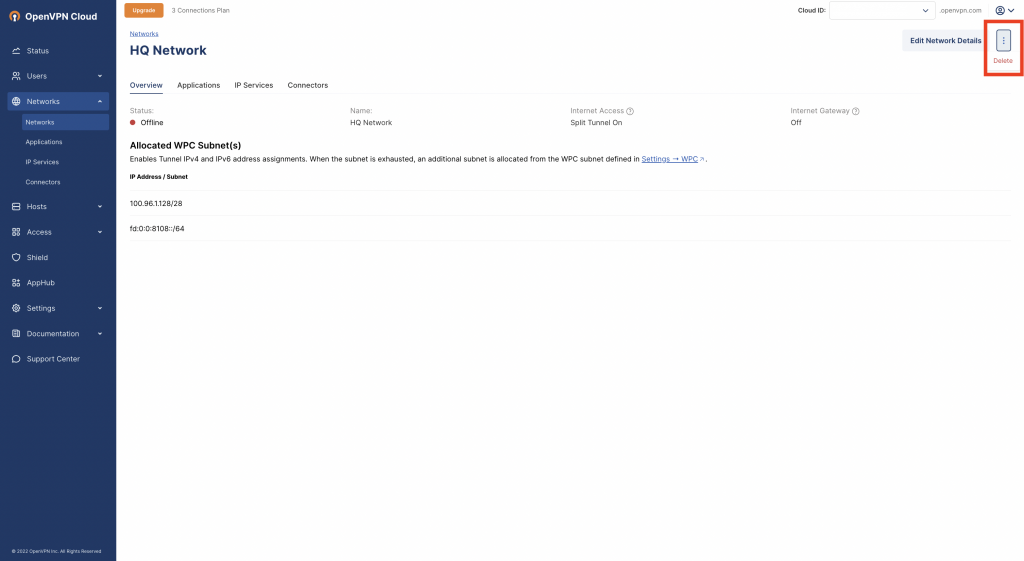

To delete a Network, click the kebab menu (three dots).

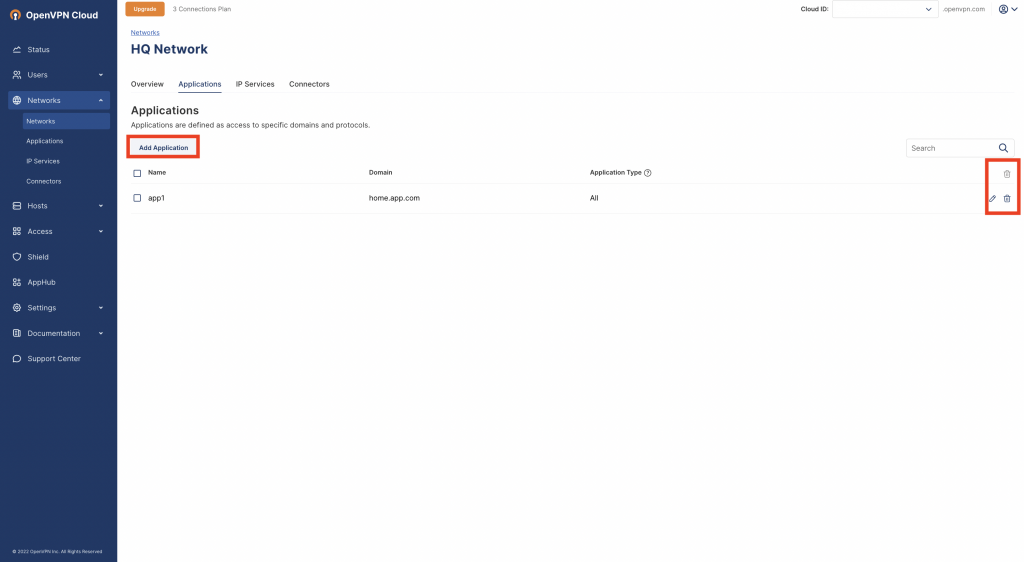

Applications tab

To access a selected Network’s Applications, navigate to Networks, click the Network Name, and click the Applications tab.

The Applications tab within the Network Overview screen, lists the Applications accessible to the selected Network and includes:

  • Application Name
  • Application Domain
  • Application Type (Protocols and/or Ports)

You may add, edit or delete an Application from this screen. To add an application to the Network click Add Application To edit, click the edit icon (pencil) of the Application to update. To remove, click the delete icon (trash can), of the Application to be deleted.

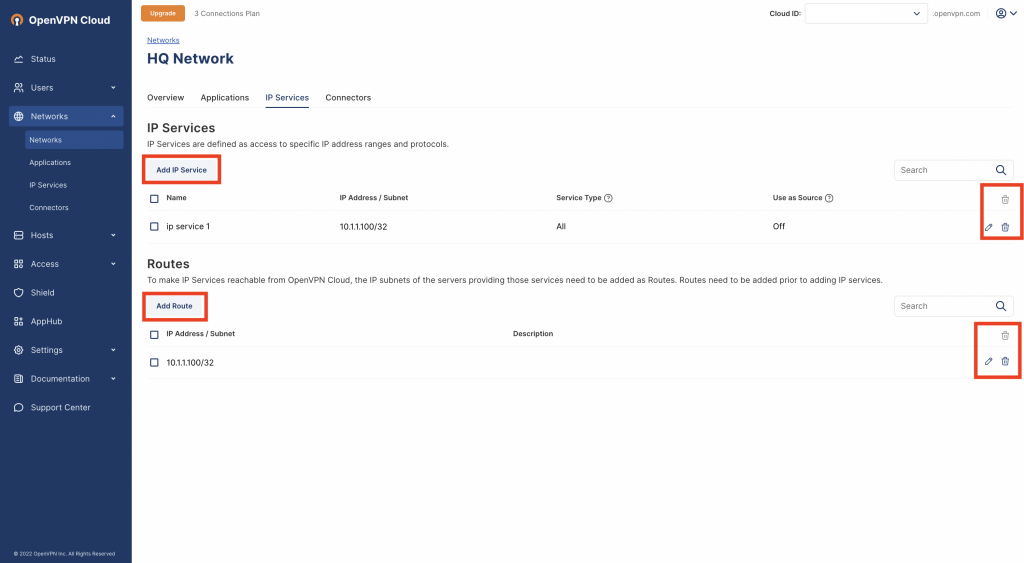

IP Services tab

The IP Services tab within the Overview screen, lists the IP Services and Routes accessible to the selected Network and includes:

  • IP Service Name
  • IP Address / Subnet
  • Service Type
  • Use as Source status
  • Route IP Address / Subnet
  • Optional Route Description

You may add, edit or delete an IP Service or Route from this screen. To add an IP Service or Route, click Add IP Service or Add Route. To edit, click the edit icon (pencil) of the item to update. To delete, select the checkbox of the item and click the delete icon (trash can).

Connectors tab

The Connector’s tab within the Overview screen lists all Connectors connected to the selected Network, and includes:

  • Connection Status
  • Connector Name
  • Connector Region(s)
  • Tunnel IP Address
  • Network(s) the Connector is assigned to

You may add, edit, delete Connectors from this screen. To add a Connector, click Add Connector. To edit, click the edit icon (pencil) of the Connector to update. To delete, select the checkbox of the Connector, then click the delete icon (trash can).

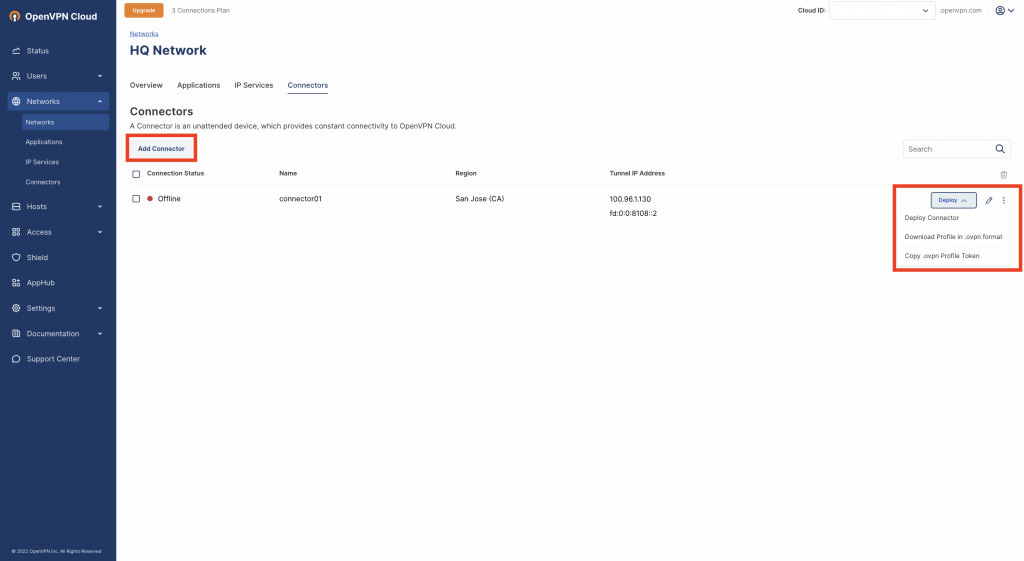

The Deploy Connector drop-down menu allows:

  • Deploy Connector
  • Download Profile in .ovpn format
  • Copy .ovpn Profile Token

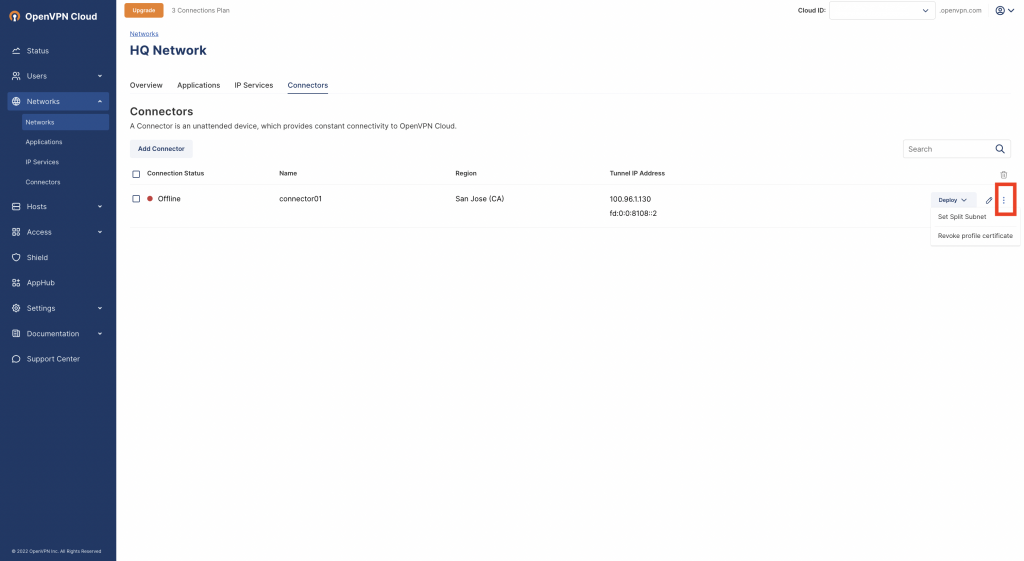

The kebab menu (three dots) allows:

  • Set Split Subnet
  • Revoke profile certificate
