User Guide - Host Settings

Host settings enable Administrators to view, add, edit, and filter Hosts within a WPC account. You may view all Hosts within a WPC account from the Host list screen, or details about specific Hosts from the Overview tab.

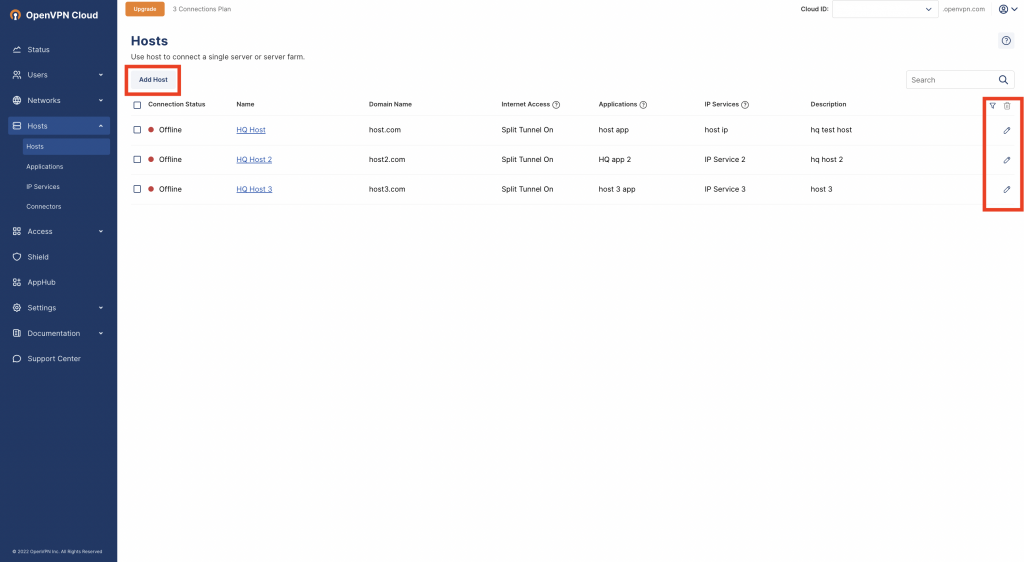

Host list screen

The Host list screen is accessible from the administration portal by navigating to Hosts. This screen lists all Hosts within a tenant’s account, including:

  • Connection Status
  • Host Name
  • Domain Name of Application accessible by the Host
  • Internet Access status of the Host
  • Applications name
  • IP Services accessible by the Host
  • (Optional) Description

You may add, edit, delete or filter Hosts from this screen. To add a Host click the Add Host button. To edit, click the edit icon (pencil) of the Host to update. To delete, select the checkbox of the Host, then click the delete icon (trash can). To filter Hosts, click the filter icon (next to the delete icon), and select your filter.

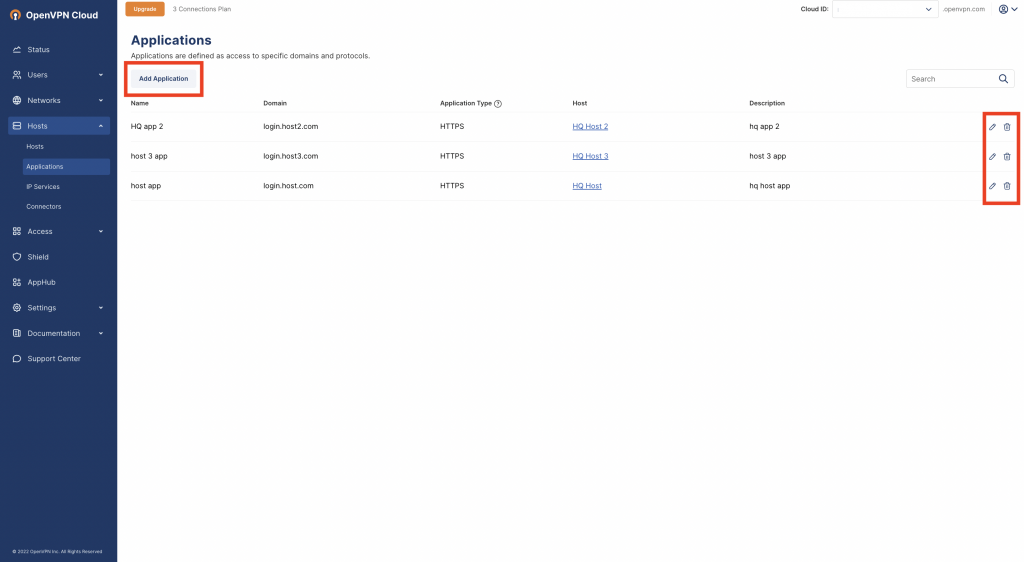

Applications list screen

The Applications list screen is accessible from the administration portal by navigating to Hosts > Applications. This screen lists all Applications accessible to Hosts within a tenant’s account, including:

  • Application Name
  • Application Domain
  • Application Type (Protocols and Ports)
  • The Host associated to the Application
  • Optional Application Description

You may add, edit or delete an Application from this screen. To add an application to the Host click Add Application. To edit, click the edit icon (pencil) of the Application to update. To delete, click the delete icon (trash can) of the Application to be deleted.

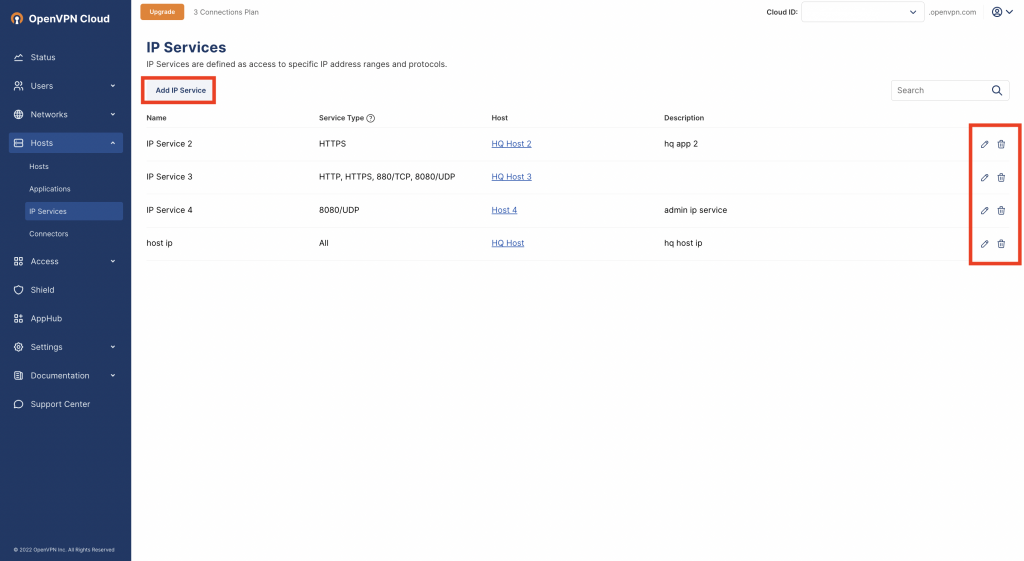

IP Services list screen

The IP Services list screen is accessible from the administration portal by navigating to Hosts > IP Services . This screen lists all Host IP Services within a tenant’s account including:

  • IP Service Name
  • Service Type (Protocols and/or Ports)
  • Host associated to the IP Service
  • (Optional) IP Service Description

You may add, edit or delete an IP Service from this screen. To add an IP Service, click Add IP Service. To edit, click the edit icon (pencil) of the IP Service to update. To remove, click the delete icon (trash can) of the IP Service to be deleted.

Connectors list screen

The Connectors list screen is accessible from the administration portal by navigating to Hosts > Connectors. This screen list s all Host Connectors within a tenant’s account including:

  • Connection Status
  • Connector Name
  • Connector Region(s)
  • Tunnel IP Address (IPv4 and IPv6)
  • Host(s) the Connector is connected to
  • (Optional) Description

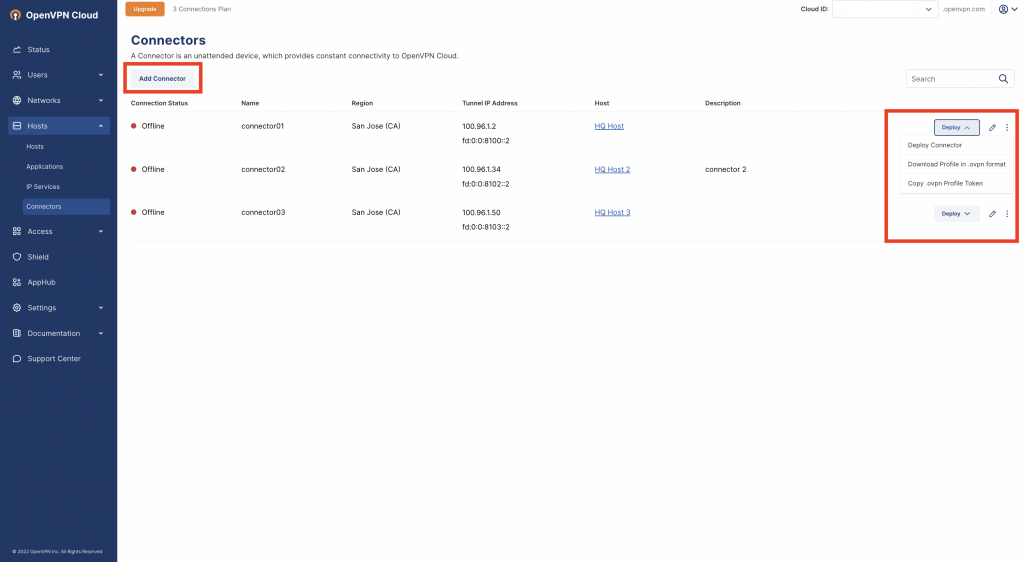

You may add, edit, or delete Connectors from this screen. To add a Connector, click Add Connector. To edit, click the Connector icon (pencil) to update. The Deploy drop-down menu allows:

  • Deploy Connector
  • Download Profile in .ovpn format
  • Copy .ovpn Profile Token

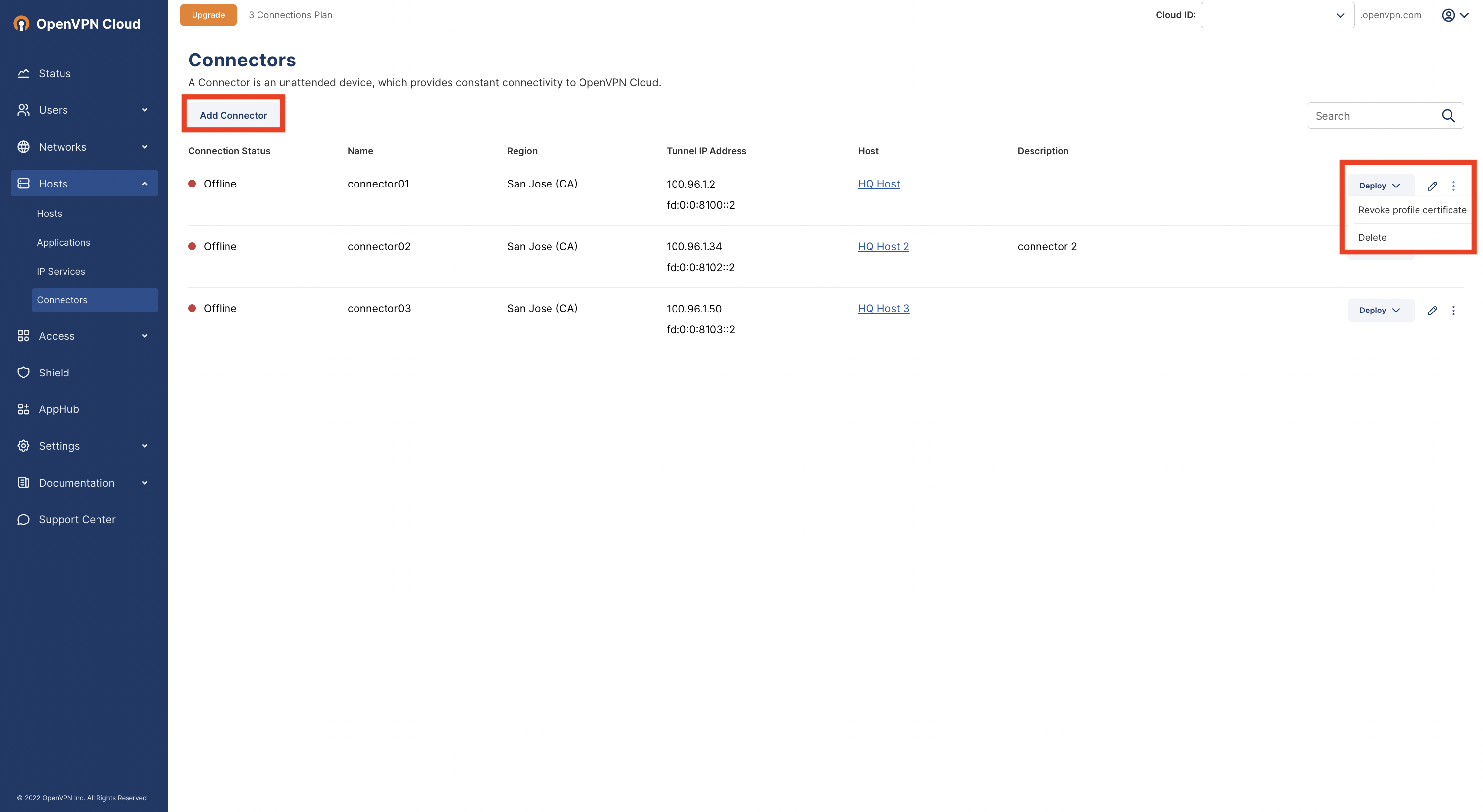

The kebab menu (three dots) allows:

  • Revoke profile certificate
  • Delete

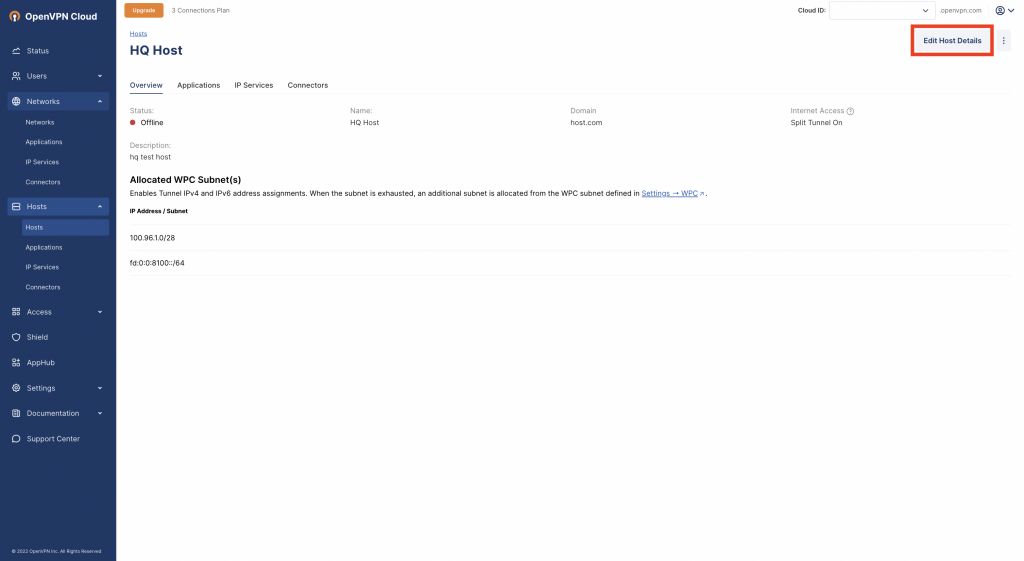

Host Overview screen

To access a Host’s Overview screen from the administration portal, navigate to Hosts, and click the Host Name.

The Host Overview screen is a high-level summary of a selected Host configuration. The Overview screen displays:

  • Host connection Status
  • Host Name
  • Configured Host Domain name
  • Host Internet Access status

This Overview screen is segmented into 3 tabs:

  • Applications
  • IP Services
  • Connectors

To edit a Host, click Edit Host Details.

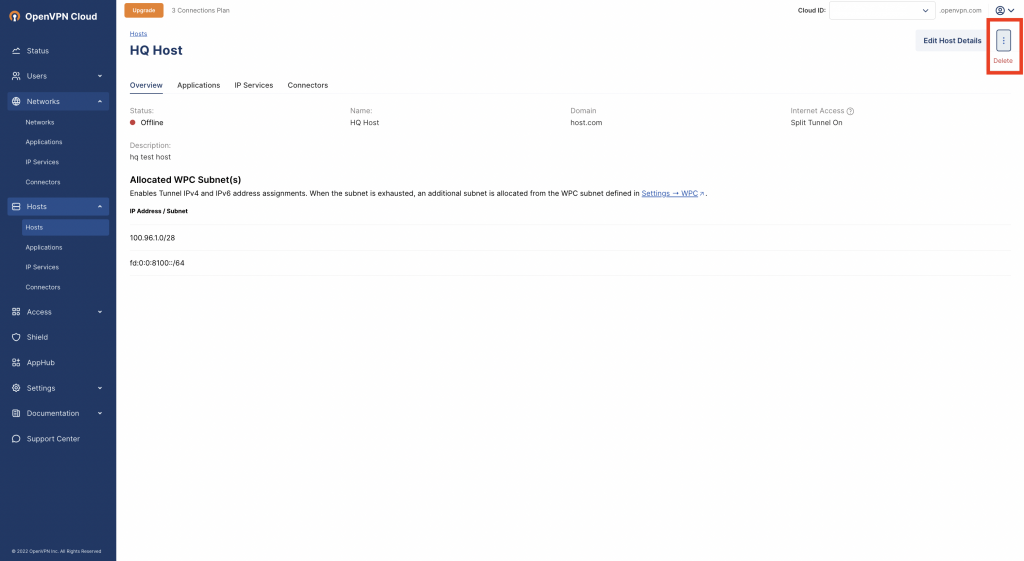

To delete the Host, click the kebab menu (three dots).

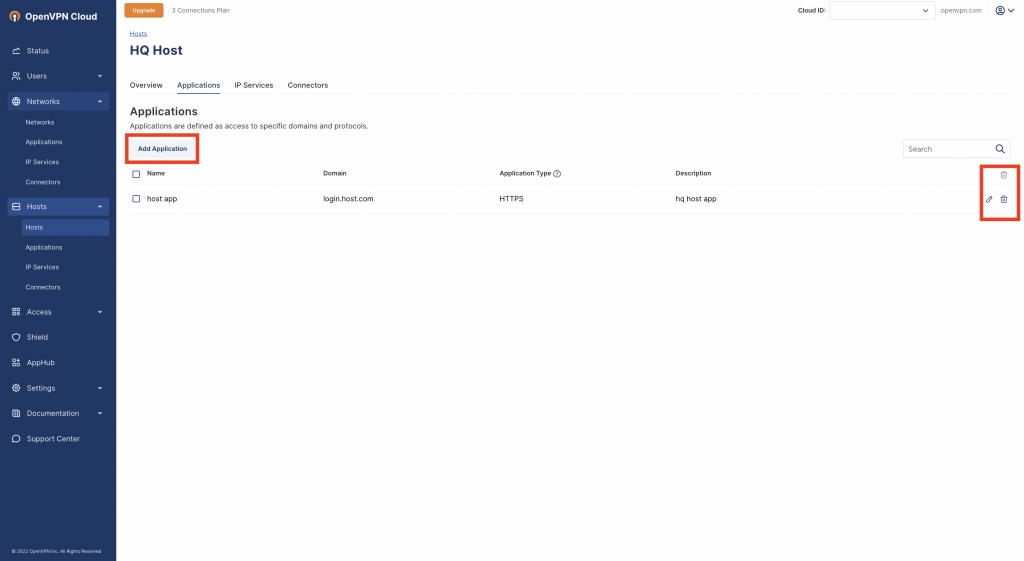

Applications tab

The Applications tab lists the Applications accessible to the selected Host and includes:

  • Application Name
  • Application Domain
  • Application Type (Protocols and/or Ports)
  • (Optional) Description

You may add, edit or delete an Application from this screen. To add an application to the Host click Add Application. To edit, click the edit icon (pencil) of the Application to update. To remove, click the delete icon (trash can), of the Application to be deleted.

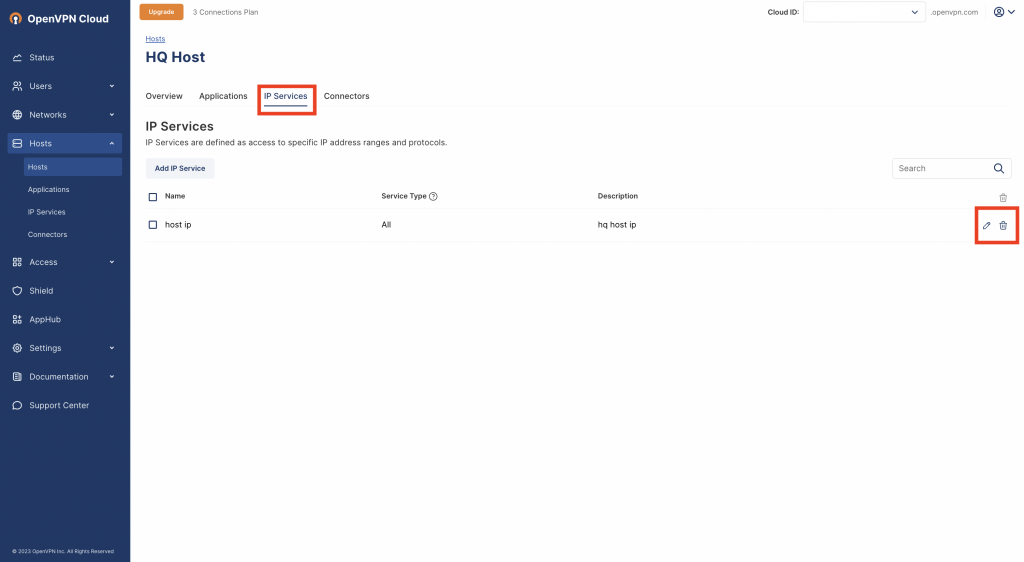

IP Services tab

The IP Services tab lists the IP Services and Routes accessible to the selected Host and includes:

  • IP Service Name
  • Service Type
  • Optional Route Description

You may add, edit or delete an IP Service from this screen. To add an IP Service, click Add IP Service. To edit, click the edit icon (pencil) of the item to update. To remove, click the delete icon (trash can) of the IP Service to be deleted.

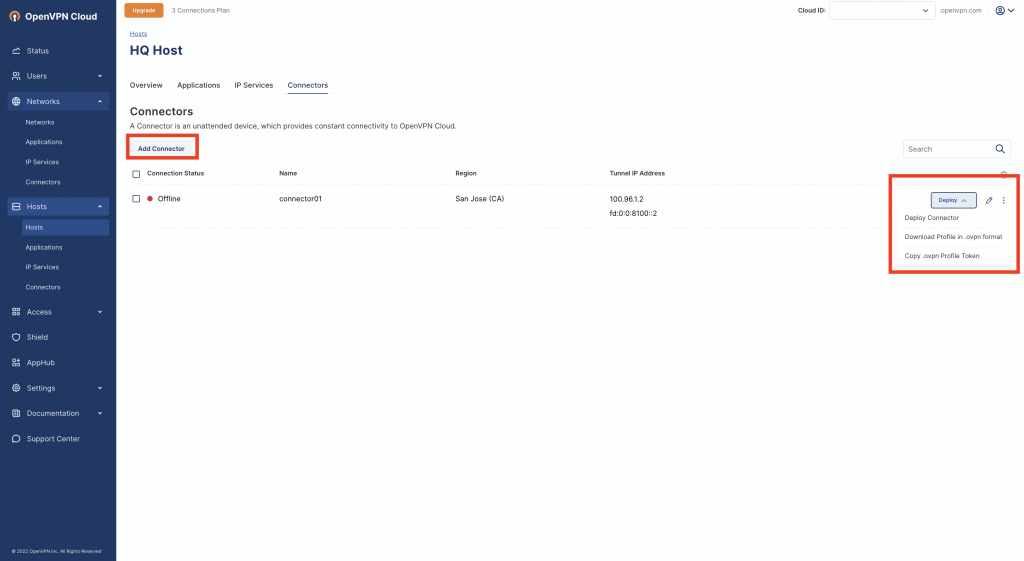

Connectors tab

The Connector’s tab lists all Connectors connected to the selected Host, and includes:

  • Connection Status
  • Connector Name
  • Connector Region(s)
  • Tunnel IP Address

You may add, edit, delete Connectors from this screen. To add a Connector, click Add Connector. To edit, click the edit icon (pencil) of the Connector to update. To delete, select the checkbox of the Connector, then click the delete icon (trash can).

The Deploy Connector drop-down menu allows:

  • Deploy Connector
  • Download Profile in .ovpn format
  • Copy .ovpn Profile Token

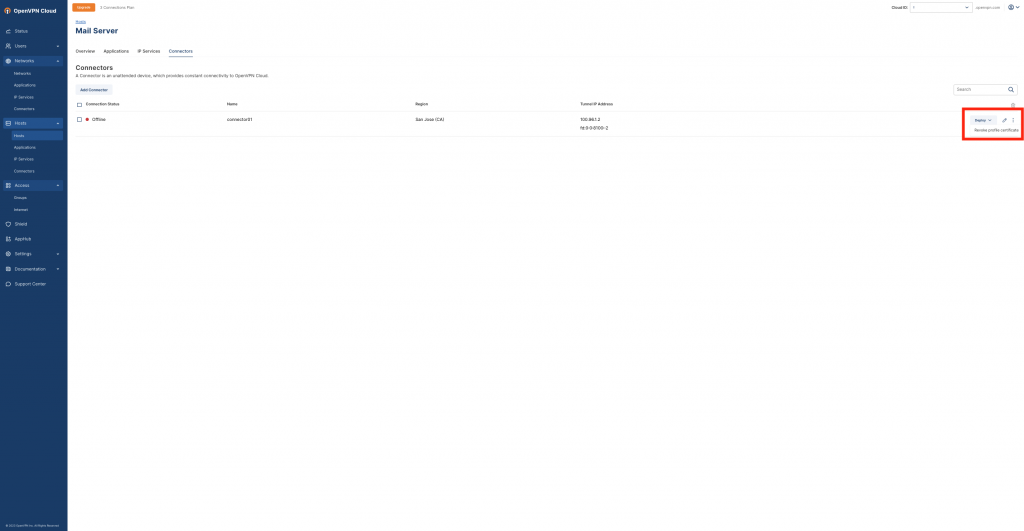

The kebab menu (three dots) allows:

  • Revoke profile certificate
