Update an IP Address and Subnet for Networks or Hosts

Follow these steps to update an IP Address or Subnet:

  1. Sign in to the OpenVPN Cloud administration portal at https://cloud.openvpn.com.
  2. Access Networks or Hosts and click the edit icon (pencil) of the entity that you want to edit.

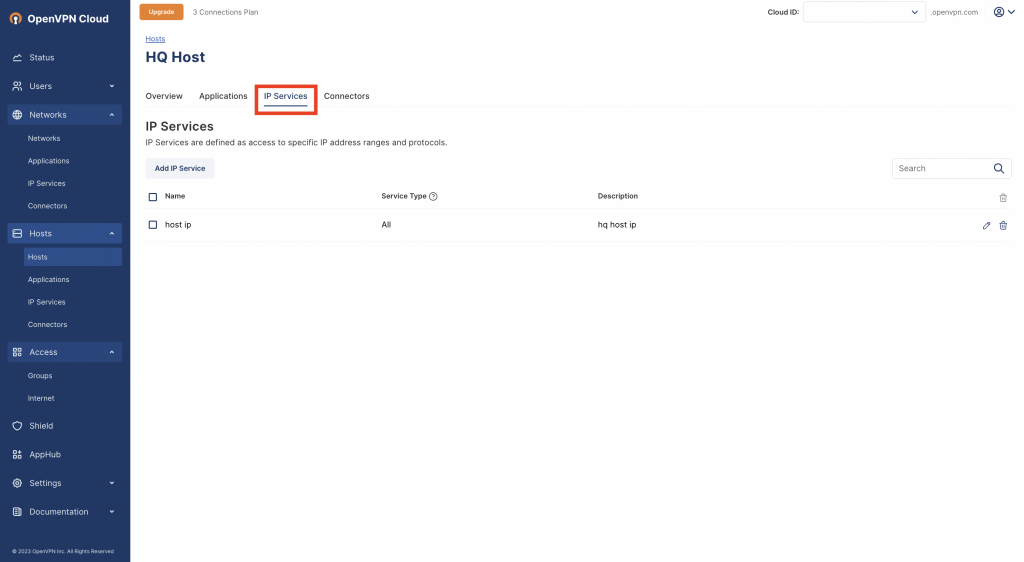

  3. Click the IP Services tab.
  4. Click the Add IP Service button.

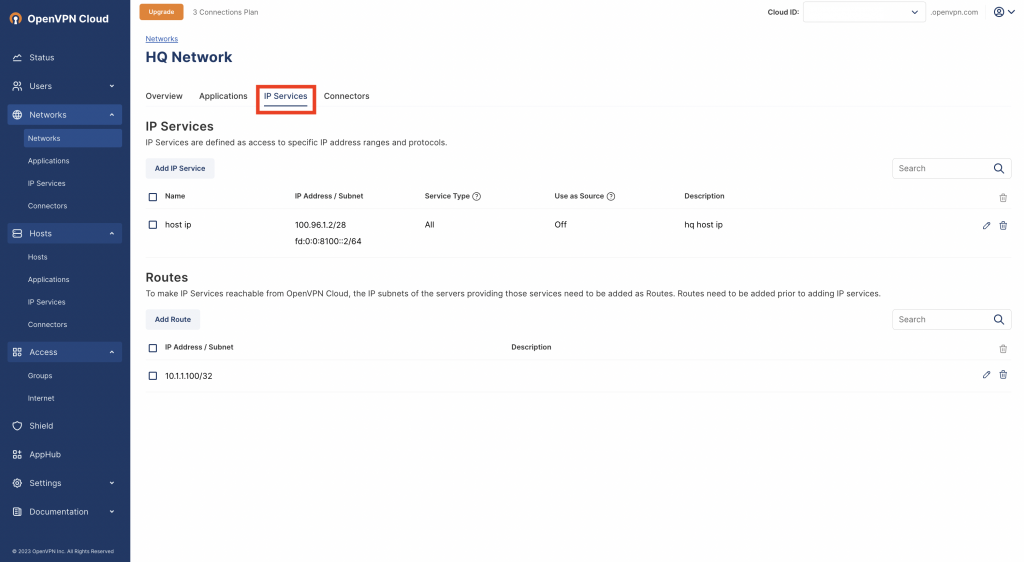

Networks

  1. Enter an IP Service Name.
  2. Specify an IP Address or Subnet. Note, you will need to configure a corresponding Route for the IP Service / Subnet in the Routes section.
  3. Select the Service Type(s) (protocols and/or ports).
  4. Toggle Use as Source to ON if you will configure granular access for Access Groups.
  5. (Optional) Enter a Description.
  6. Click Add.

Hosts

  1. Enter an IP Service Name.
  2. Select the Service Type(s) (protocols and/or ports).
  3. (Optional) Enter a Description.
  4. Click Add.

Note: If you choose “Any” as the service type, you can access the entire subnet at the IP layer through the IP and ICMP protocols and ports.

Alternatively, you may also update an IP Service or Subnet for a Network or Host by:

  • Accessing the Networks or Host menu
  • Clicking IP Services in the left menu
  • Clicking the edit icon (pencil) of the IP Service to update
  • Entering the applicable information
