Set the IP Subnet Range from which to Assign Tunnel IP Addresses

Abstract

Tunnel IP Addresses for all User Devices and Connectors are assigned from the WPC Subnet range.

Tunnel IP Addresses for all User Devices and Connectors are assigned from the WPC Subnet range.

By default, CloudConnexa uses IP address ranges reserved for private use, so you typically don't need to change these values.

You may need to update the WPC subnet range if it conflicts with IP address ranges already used in your private networks. You can also add additional subnets if needed. Ensure that your WPC subnet ranges don’t overlap with the IP address ranges already in use with the private networks you plan to connect to CloudConnexa.

Edit the WPC Subnet range

To set or add to the WPC Subnet, follow the steps below:

  2. Navigate to Settings → WPC.

  3. Click Edit.

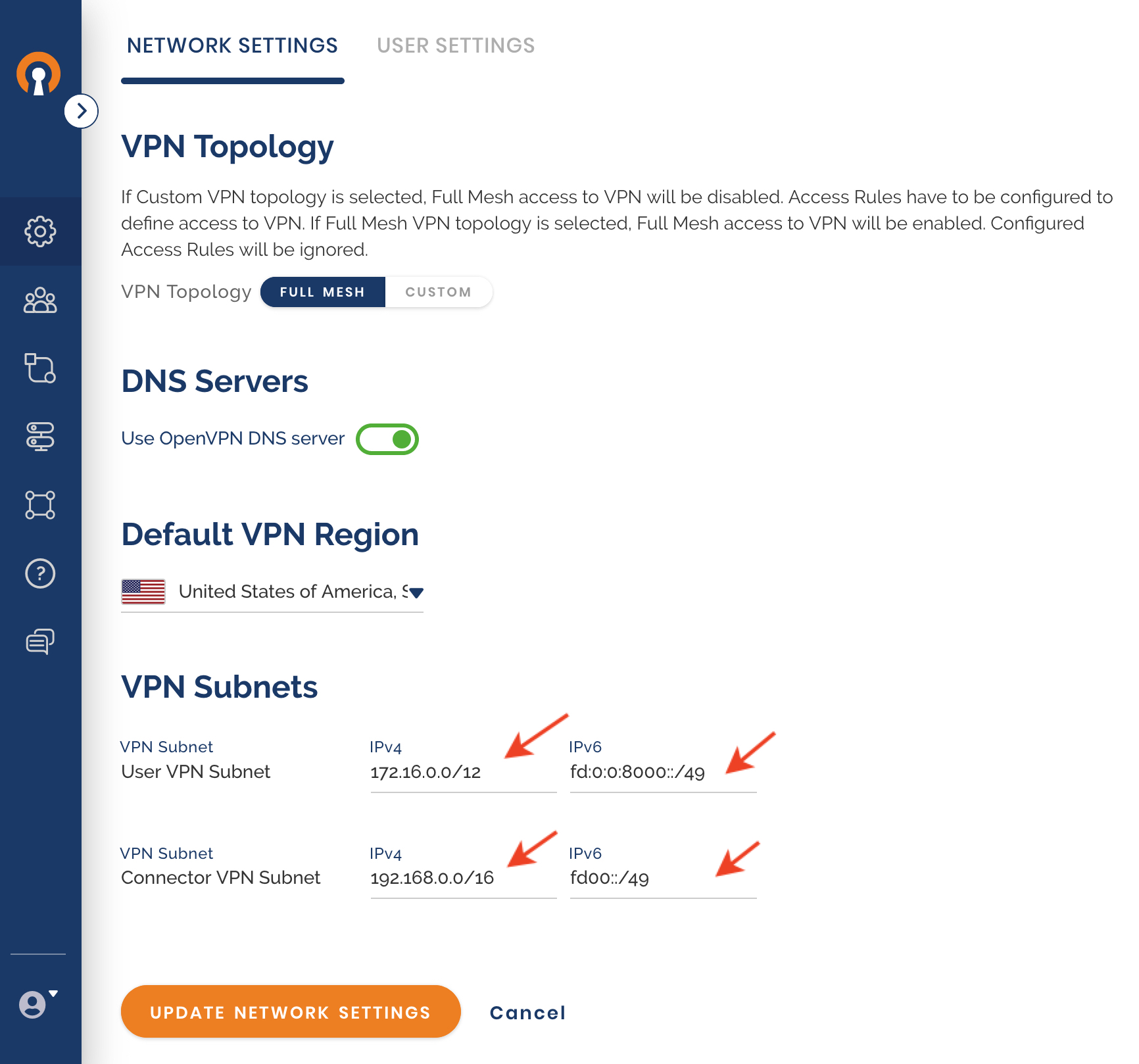

  4. In the WPC Subnet section:

    • Edit the IPv4 subnet range.

    • If IPv4 and IPv6 is enabled, you can also edit the IPv6 subnet range.

    • Click + Add new to add additional subnet ranges.

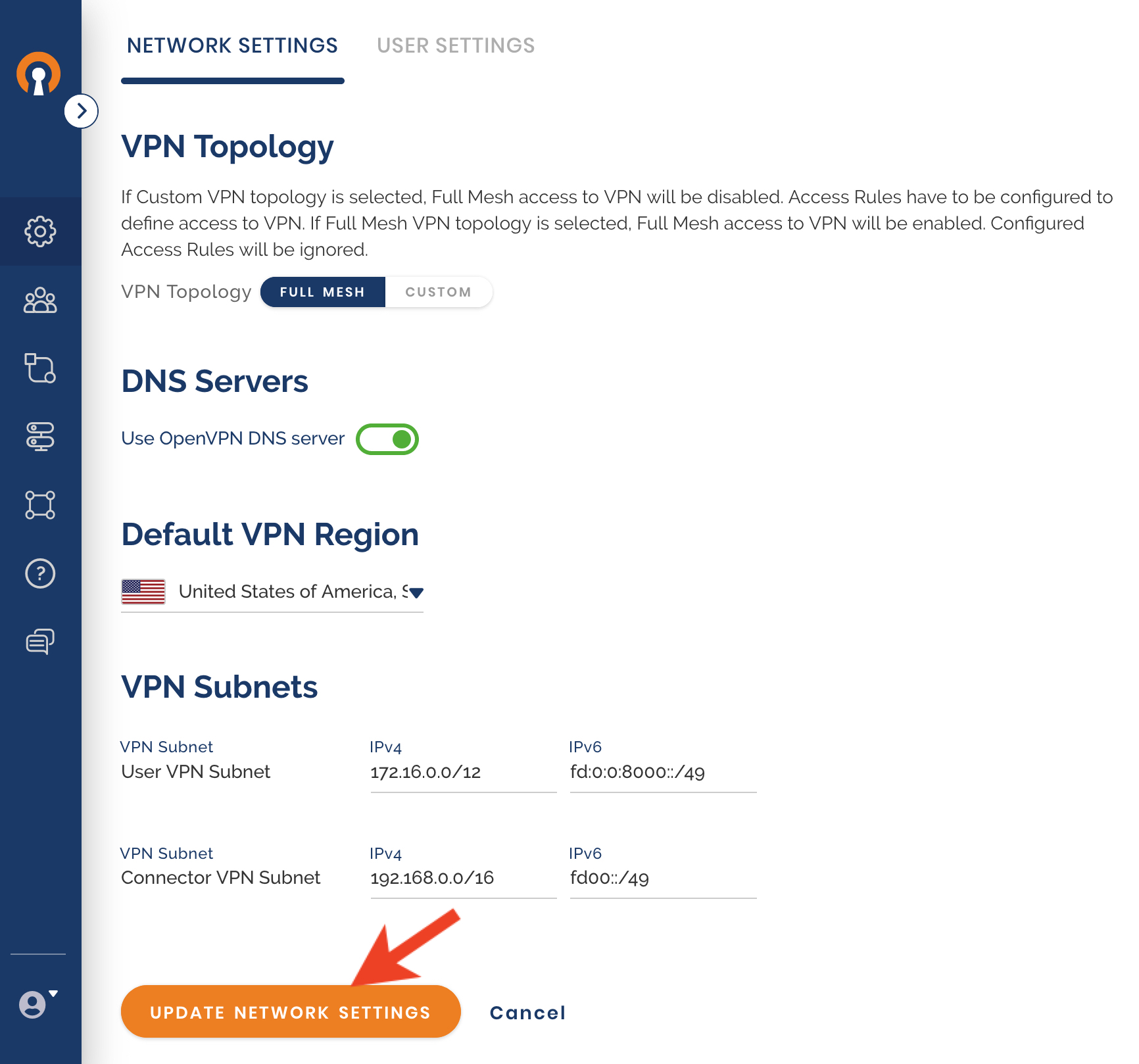

  5. Click Update.

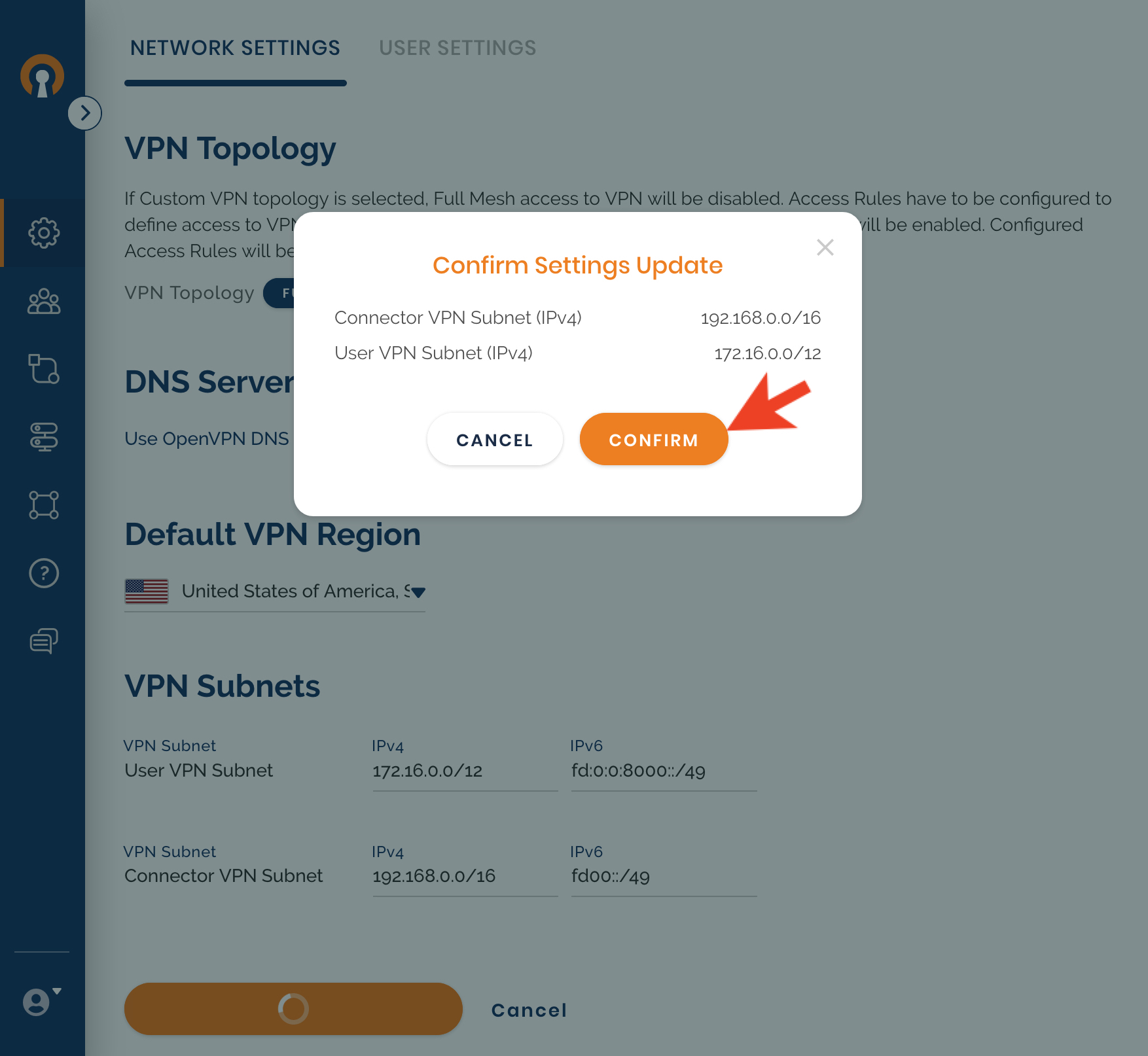

  6. Check that the details shown in the confirmation dialog box are correct, and click Confirm.

Tutorial showing how to set or add WPC Subnets
