Tutorial: Configure Domain Routing Exclusion and Bypass Rules Using the Access Server CLI

Abstract

Learn how to configure and validate domain routing exclusion and bypass rules in OpenVPN Access Server using the CLI — including how to create rulesets, define bypass and match-all rules, and verify that traffic is correctly excluded from or routed through the VPN tunnel.

Overview

This tutorial explains how to configure and validate domain routing exclusion and bypass rules in Access Server using the command-line interface (CLI).

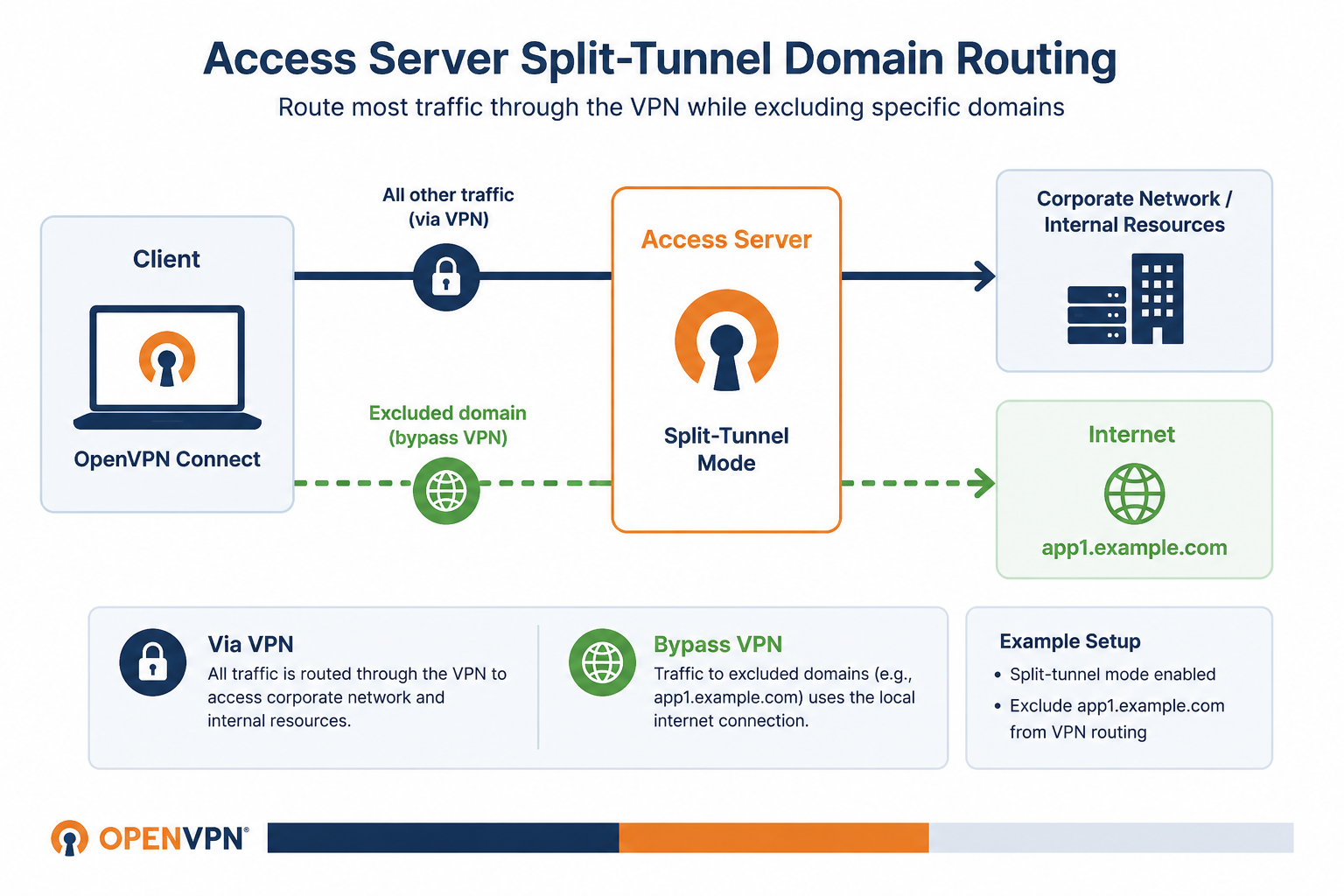

In this example, an IT administrator has deployed Access Server in split-tunnel mode and wants most traffic to route through the VPN, while allowing traffic to a specific application (app1.example.com ) to bypass the VPN and use the local internet connection instead.

Use this tutorial to:

  • Configure domain routing exclusion and bypass rules.

  • Verify that traffic is routed as expected.

  • Test domain-based routing behavior in a split-tunnel environment.


Prerequisites

  • Access Server 3.2.0 or newer.

  • Root access to your Access Server's console.

  • DNS proxy enabled on your Access Server.

  • One or more users or groups configured.

Note

In our documentation, we use example IPv4 addresses and subnets reserved for documentation, such as 192.0.2.0/24, 198.51.100.0/24, and 203.0.113.0/24.

Ensure you replace them with valid IPv4 addresses and subnets for your network(s).

Step 1: Create a ruleset and deny rule

  1. Connect to the console and get root privileges.

  2. Create a global ruleset:

    sacli --name "__DEFAULT___default_ruleset" --comment "Default ruleset for global domain rules" AccessControlRulesetsAdd

    • Example output:

      1

  3. Note this as the returned ruleset ID.

  4. Create a bypass rule for app1.example.com:

    sacli --ruleset_id "1" --rule_type "domain_routing" --match_type "domain" --match_data "app1.example.com" --action "bypass" --position "1" --comment "" AccessControlRulesAdd

    Parameter

    Value

    ruleset_id

    Use the value from the global ruleset output.

    match_type with domain

    Match an exact domain. For example, app1.example.com.

    match_type with domain_or_subdomain

    Match wildcard domains. For example, example.com.

    Tip

    Wildcard domain syntax differs between interfaces:

    • CLI: example.com

    • Admin Web UI: *.example.com

    match_data

    Domain to route.

    action with bypass

    Bypasses traffic to the specified domain.

    position

    Use the value for the next available position noted above.

  5. Create a match-all rule to send all remaining traffic through the VPN:

    sacli --ruleset_id "1" --rule_type "domain_routing" --match_type "domain_or_subdomain" --match_data "" --action "nat" --position "2" --comment "" AccessControlRulesAdd

    Tip

    Set --match_data to an empty value to match all domains. This rule must be placed after any bypass rules.

  6. Attach the ruleset globally:

    sacli --user "__DEFAULT__" --position "0" --ruleset_id "1" AccessControlUserRulesetsAdd

    Tip

    Global rules use __DEFAULT__. Replace this value when applying rules to specific users or groups.

  7. Apply the changes:

    sacli start

Step 2: Verify the rules configuration

  1. List rulesets:

    sacli AccessControlRulesetsList

    • Example output:

      [
  {
    "comment": "Default ruleset for global domain rules",
    "id": 1,
    "name": "__DEFAULT___default_ruleset",
    "owner": "__DEFAULT__",
    "owner_type": "user_default",
    "position": 0
  }
]

  2. Note the ruleset ID.

  3. List rules in the ruleset:

    sacli --ruleset_id '1'1 AccessControlRulesList

    1

    Replace the ruleset_id value with the value from the ruleset list output.

    • Example output:

      [
  {
    "action": "bypass",
    "comment": "",
    "id": 1,
    "match_data": "app1.example.com",
    "match_type": "domain",
    "position": 1,
    "ruleset_id": 1,
    "type": "domain_routing"
  },
  {
    "action": "nat",
    "comment": "",
    "id": 2,
    "match_data": "",
    "match_type": "domain_or_subdomain",
    "position": 2,
    "ruleset_id": 1,
    "type": "domain_routing"
  }
]

  4. Confirm the bypass rules include the expected values. Example:

    • action: bypass

    • match_data: app1.example.com

Step 3: Verify traffic is excluded from the VPN

In this step, connect to the VPN as a user and generate traffic to app1.example.com to confirm it's bypassed, then test a second domain to confirm all other traffic routes through the VPN.

  1. Connect a VPN client.

  2. From the Access Server console, enable DNS proxy debug logging:

    echo "DEBUG_DNSPROXY=true" >> /usr/local/openvpn_as/etc/as.conf && systemctl restart openvpnas

  3. Start a packet capture on Access Server:

    tcpdump -eni any icmp

  4. From the client, ping app1.domain.com:

    ping app1.example.com

    • Example output:

      PING app1.example.com (203.0.113.1) 56(84) bytes of data.
64 bytes from 203.0.113.1: icmp_seq=1 ttl=53 time=3.46 ms
--- app1.example.com ping statistics ---
1 packets transmitted, 1 received, 0% packet loss, time 0ms
rtt min/avg/max/mdev = 3.456/3.456/3.456/0.000 ms

    • The domain resolves to its public IP address. Access Server doesn't map it to an internal IP address from the internal DNS IP range, which confirms the traffic was bypassed and isn't routing through the VPN tunnel.

  5. On Access Server, check the DNS proxy log:

    grep "DNSPROXY" /var/log/openvpnas.log

    • Example output:

      2026-05-03T10:01:14-0500 [stdout#info] [DNSPROXY] OUT: '[10] Received query from 172.27.232.2:61204'
2026-05-03T10:01:14-0500 [stdout#info] [DNSPROXY] OUT: '[10] Forwarding query for app1.example.com. IN A'
2026-05-03T10:01:14-0500 [stdout#info] [DNSPROXY] OUT: '[10] Received response'

    • The DNS proxy forwarded the query without mapping it to an internal IP, and the tcpdump output shows no traffic, confirming the bypass is working correctly.

  6. From the client, ping a second domain to confirm all other traffic routes through the VPN:

    ping app2.example.com

    • Example output:

      PING app2.example.com (100.64.0.2) 56(84) bytes of data.
64 bytes from 100.64.0.2: icmp_seq=1 ttl=53 time=3.46 ms
--- app2.example.com ping statistics ---
1 packets transmitted, 1 received, 0% packet loss, time 0ms
rtt min/avg/max/mdev = 3.456/3.456/3.456/0.000 ms

    • Access Server maps app2.example.com (real IP 203.0.113.2) to an internal IP (100.64.0.2) from the DNS internal IP range (100.64.0.0/10 by default), confirming traffic is routing through the VPN tunnel.

  7. On Access Server, check the DNS proxy log:

    grep "DNSPROXY" /var/log/openvpnas.log

    • Example output:

      2026-05-03T10:13:23-0500 [stdout#info] [DNSPROXY] OUT: '[148] Received query from 172.27.232.2:52157'
2026-05-03T10:13:23-0500 [stdout#info] [DNSPROXY] OUT: '[148] Forwarding query for app2.example.com. IN A'
2026-05-03T10:13:23-0500 [stdout#info] [DNSPROXY] OUT: '[148] Received response'
2026-05-03T10:13:23-0500 [stdout#info] [DNSPROXY] OUT: '[148] Changed address for app2.example.com: 203.0.113.2 -> 100.64.0.2'

    • The DNS proxy intercepted the query and remapped the address to an internal IP address, confirming that the match-all rule is routing traffic through the VPN as expected.

    Tip

    Debug flags can generate large amounts of log data. After collecting the necessary information, remove the debug flag and restart Access Server to prevent excessive logging.

Step 4: (Optional) Configure a wildcard domain routing rule

Use this step if you need more granular control. For example, you can bypass traffic to app1.example.com while routing all other example.com traffic through the VPN.

  1. Create a bypass rule for app1.example.com:

    sacli --ruleset_id "1" --rule_type "domain_routing" --match_type "domain" --match_data "app1.example.com" --action "bypass" --position "1" --comment "" AccessControlRulesAdd

  2. Create a domain routing rule to send all example.com wildcard traffic through the VPN:

    sacli --ruleset_id "1" --rule_type "domain_routing" --match_type "domain_or_subdomain" --match_data "example.com" --action "nat" --position "2" --comment "" AccessControlRulesAdd

    • This routes traffic to app2.example.com, app3.example.com, and any other example.com subdomains through the VPN, while app1.example.com remains bypassed.
